SWINGARM
4-80
EAS23330
SWINGARM

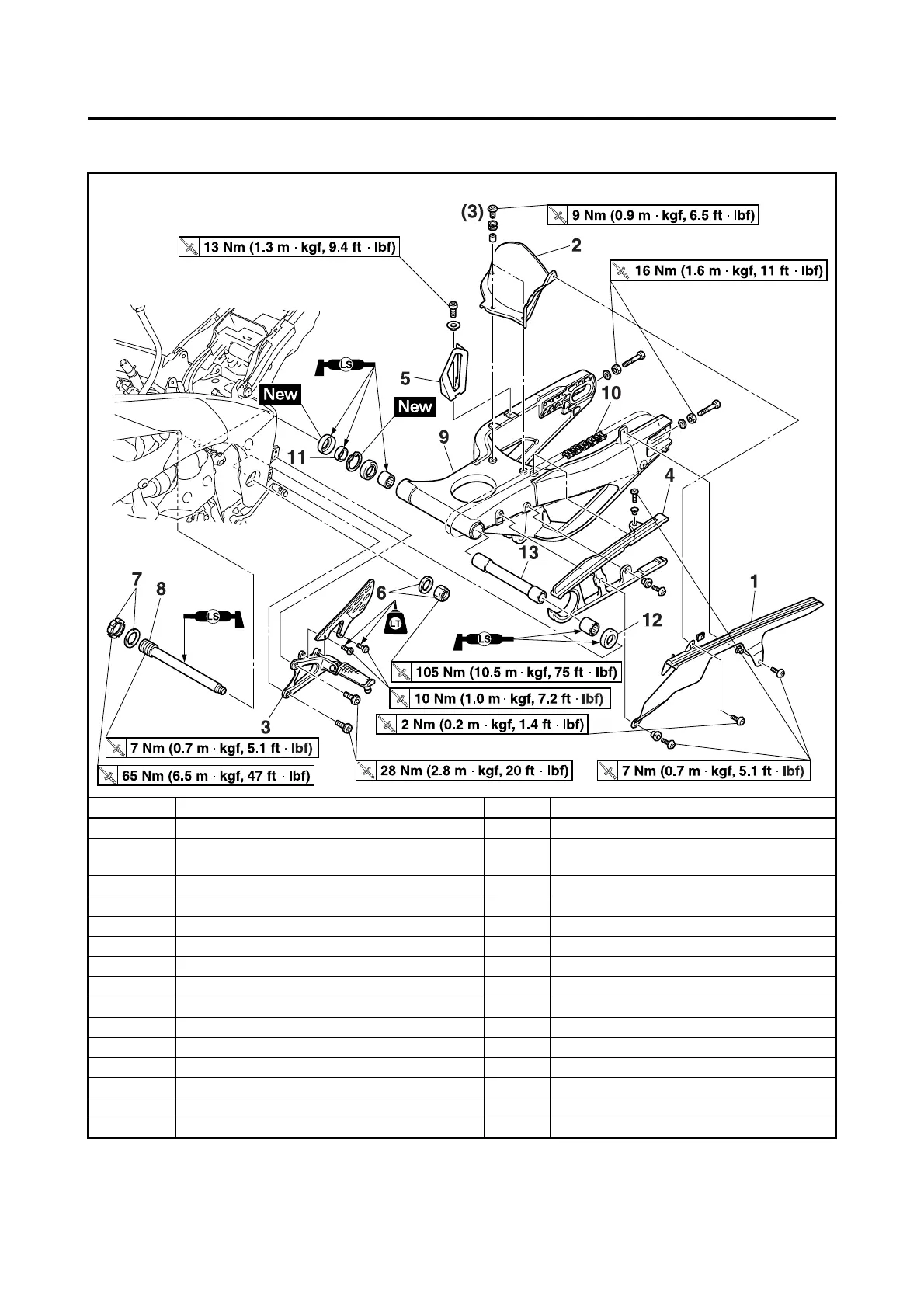

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear wheel Refer to “REAR WHEEL” on page 4-25.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-76.
1 Drive chain guard 1
2 Rear fender 1
3Left footrest 1
4 Drive chain guide 1
5 Brake hose holder 1
6 Pivot shaft nut/washer 1/1
7 Pivot shaft ring nut/washer 1/1
8 Pivot shaft 1
9 Swingarm 1
10 Drive chain 1
11 Collar 1
12 Dust cover 1
13 Spacer 1
