ENGINE REMOVAL
5-6
Disconnecting the leads and hoses
Order Job/Parts to remove Q’ty Remarks
Battery negative lead Refer to “GENERAL CHASSIS” on page 4-1.
Battery positive lead Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Side cowling air duct Refer to “GENERAL CHASSIS” on page 4-1.
Lower cowling Refer to “GENERAL CHASSIS” on page 4-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Air filter case duct
Refer to “AIR INDUCTION SYSTEM” on
page 7-21.
Radiator Refer to “RADIATOR” on page 6-1.
Shift pedal Refer to “CHAIN DRIVE” on page 4-85.
Drive sprocket Refer to “CHAIN DRIVE” on page 4-85.
Throttle body assembly
Refer to “THROTTLE BODIES” on page 7-
12.

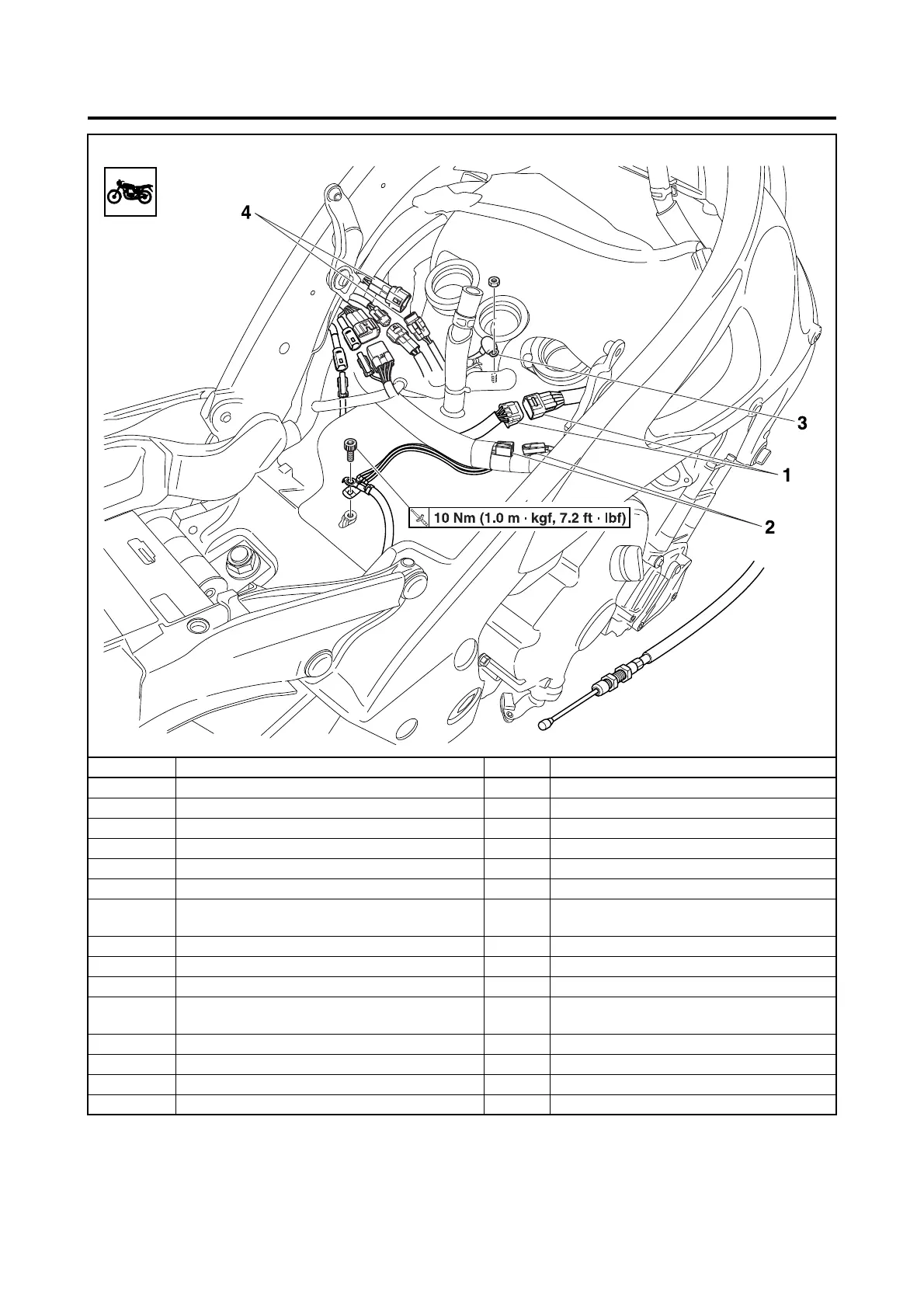

1 Sub wire harness coupler 1 Disconnect.
2 Crankshaft position sensor coupler 1 Disconnect.
3 Starter motor lead 1 Disconnect.
4 Sidestand switch lead coupler 1 Disconnect.
