ENGINE REMOVAL
5-8

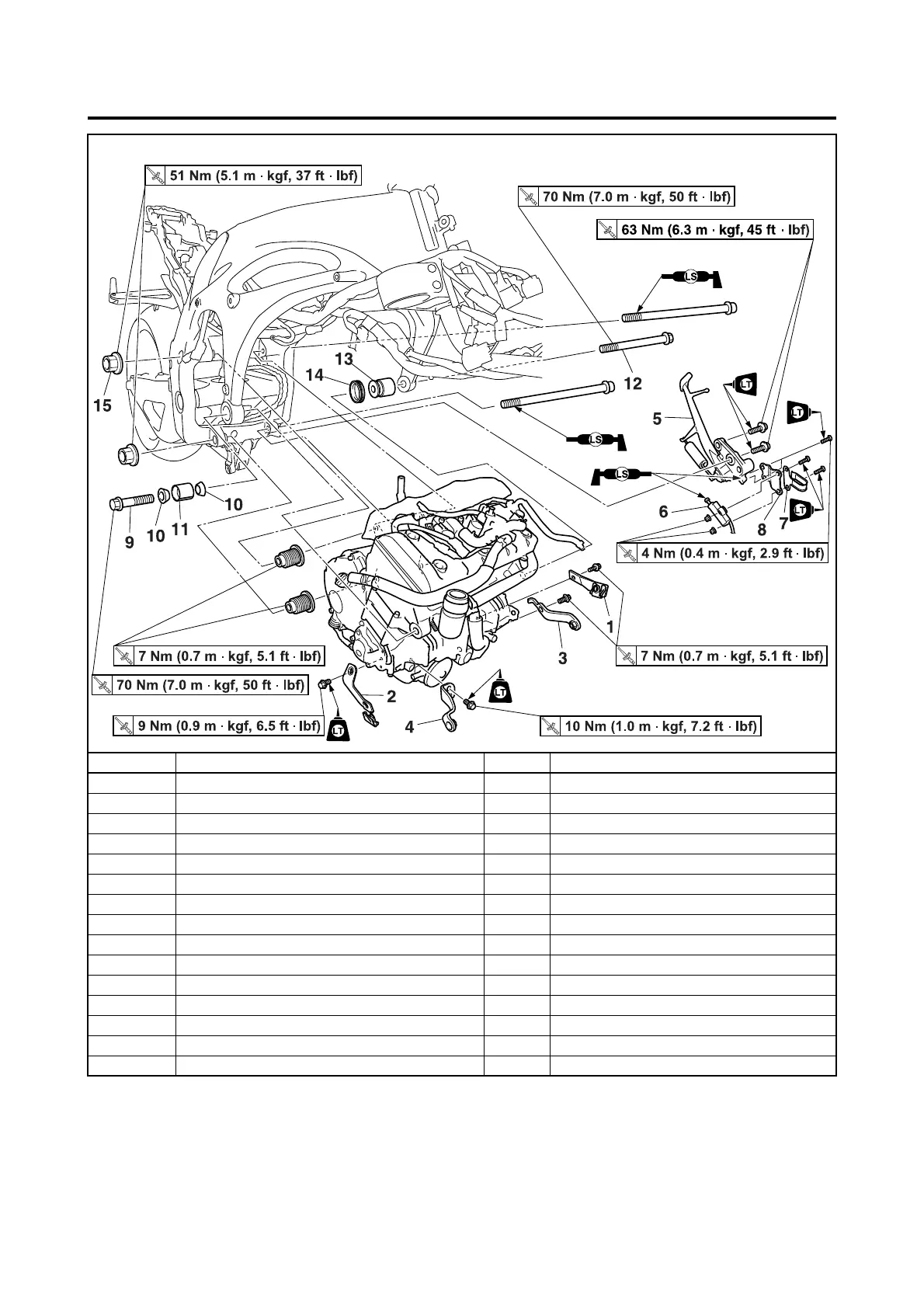

Removing the engine
Order Job/Parts to remove Q’ty Remarks
1 Left lower cowling bracket 1
2 Right lower cowling bracket 1
3 Left inner panel bracket 1
4 Right inner panel bracket 1
5 Sidestand assembly 1
6 Sidestand switch 1
7 Holder 1
8 Sidestand switch bracket 1
9 Engine mounting bolt (front right side) 1
10 Engine mount collar (front right side) 2
11 Engine mount collar (front right side) 1
12 Engine mounting bolt (front left side) 1
13 Left engine mount collar 1
14 Left engine mount damper 1
15 Engine mount nut (rear upper side) 1
