REAR WHEEL
4-28
EAS22040

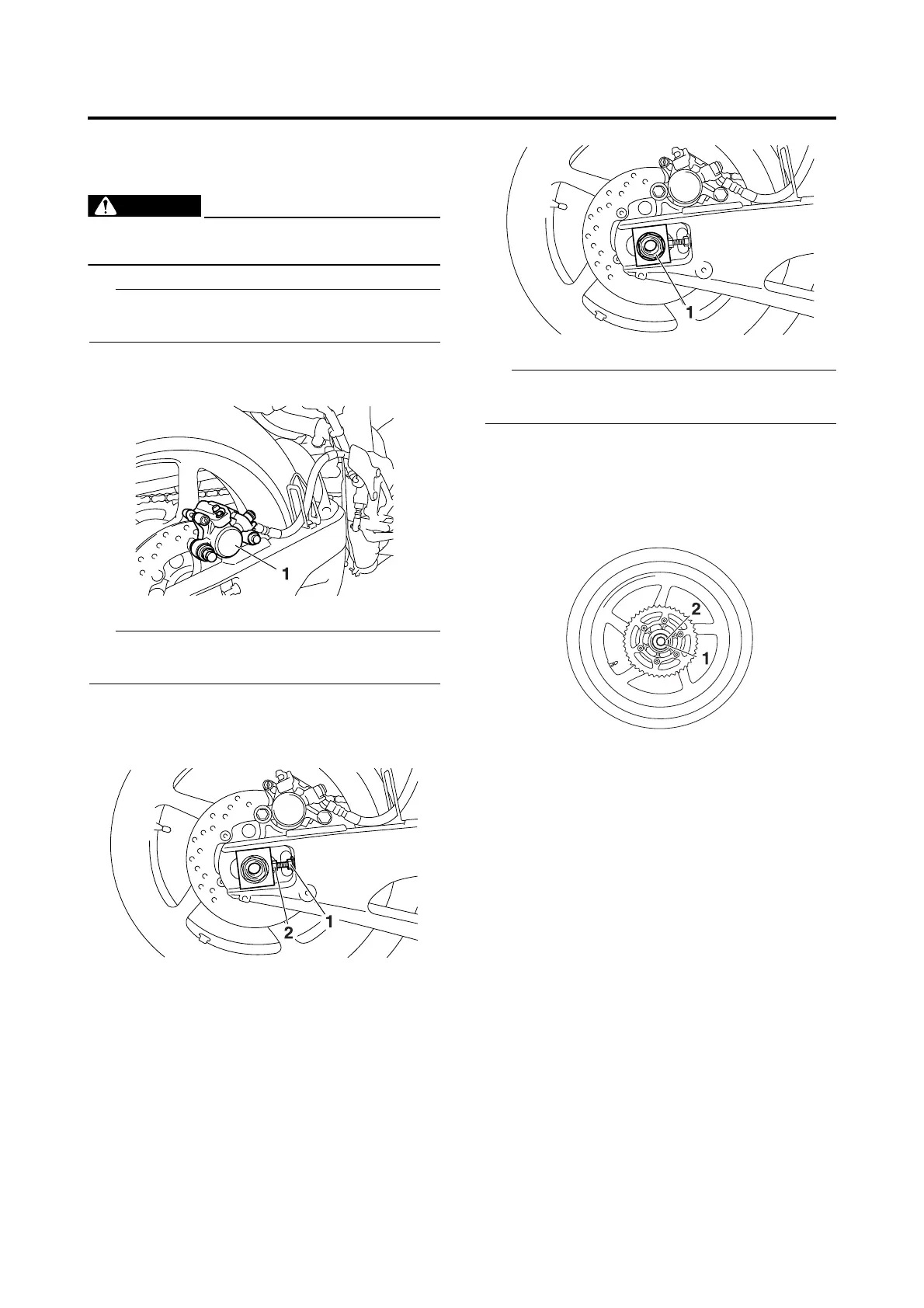

REMOVING THE REAR WHEEL
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
Place the vehicle on a suitable stand so that
the rear wheel is elevated.
2. Remove:
• Brake caliper “1”
Do not depress the brake pedal when remov-
ing the brake caliper.
3. Loosen:
• Locknuts “1”
• Adjusting bolts “2”
4. Remove:
• Wheel axle nut “1”
• Wheel axle
• Rear wheel
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
5. Remove:
• Left collar “1”
• Rear wheel drive hub “2”
• Rear wheel drive hub damper
• Right collar
EAS22090
CHECKING THE REAR WHEEL
1. Check:
• Wheel axle
• Rear wheel
• Wheel bearings
•Oil seals
Refer to “CHECKING THE FRONT
WHEEL” on page 4-19.
2. Check:
•Tire
• Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on
page 3-19 and “CHECKING THE
WHEELS” on page 3-19.
3. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT
WHEEL” on page 4-19.
