GENERATOR

5-36

EAS24480

GENERATOR

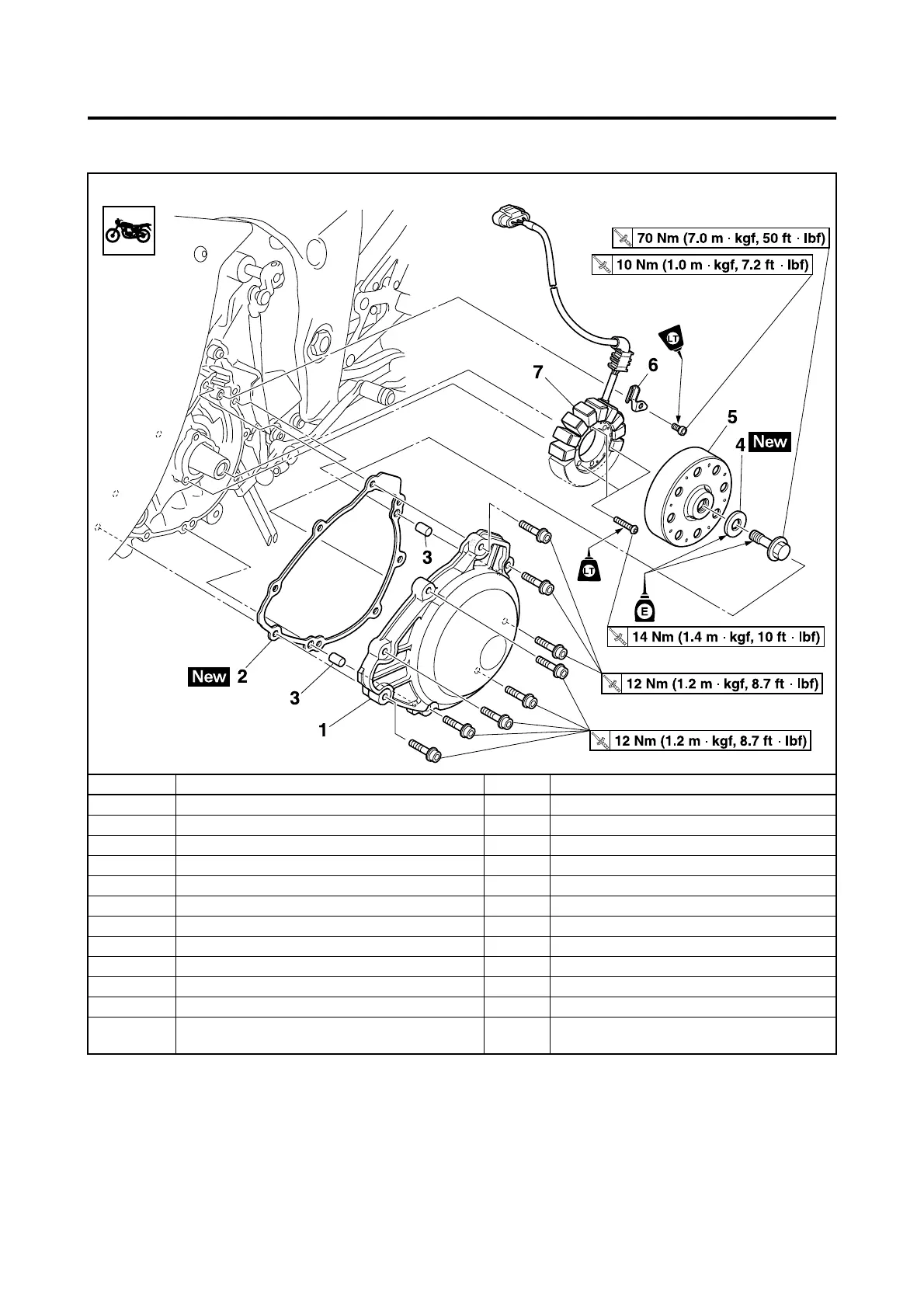

Removing the generator

Order Job/Parts to remove Q’ty Remarks

Fuel tank Refer to “FUEL TANK” on page 7-1.

Air filter case Refer to “AIR FILTER CASE” on page 7-5.

Side cowling Refer to “GENERAL CHASSIS” on page 4-1.

Stator coil lead coupler Refer to “GENERAL CHASSIS” on page 4-1.

1 Generator cover 1

2 Generator cover gasket 1

3Dowel pin 2

4 Washer 1

5 Generator rotor 1

6 Stator coil lead holder 1

7 Stator coil assembly 1

For installation, reverse the removal proce-

dure.
