RADIATOR
6-1
EAS26380
RADIATOR

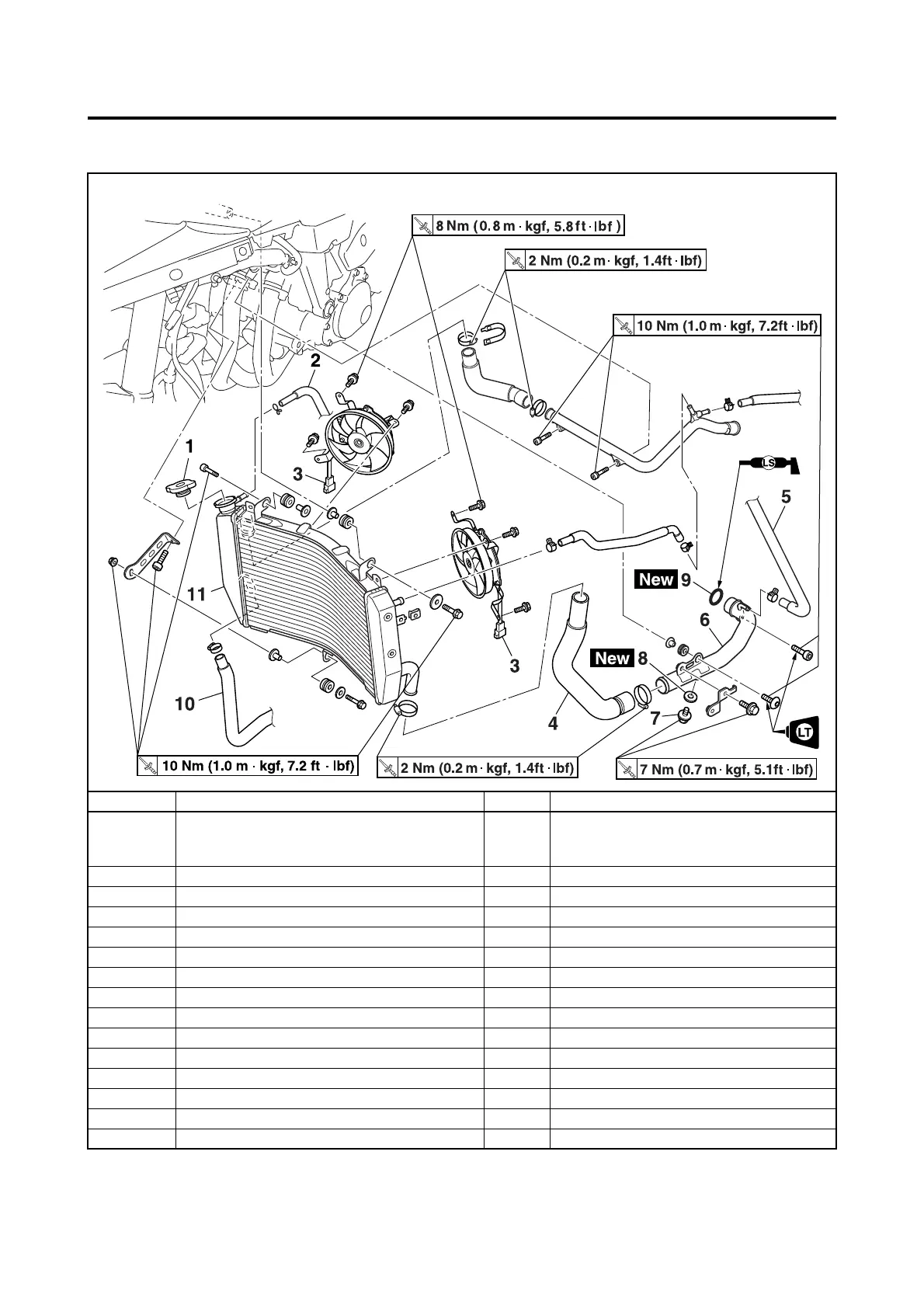

Removing the radiator
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-32.
ECU Refer to “GENERAL CHASSIS” on page 4-1.
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Rectifier/regulator Refer to “GENERAL CHASSIS” on page 4-1.
1 Radiator cap 1
2 Coolant reservoir hose 1 Disconnect.
3 Radiator fan motor coupler 2 Disconnect.
4 Radiator outlet hose 1
5 Water pump bypass hose 1 Disconnect.
6 Water pump inlet pipe 1
7Drain bolt 1
8 Copper washer 1
9O-ring 1
10 Oil cooler outlet hose 1 Disconnect.
11 Radiator 1
To Next Page
