GENERAL CHASSIS
4-3

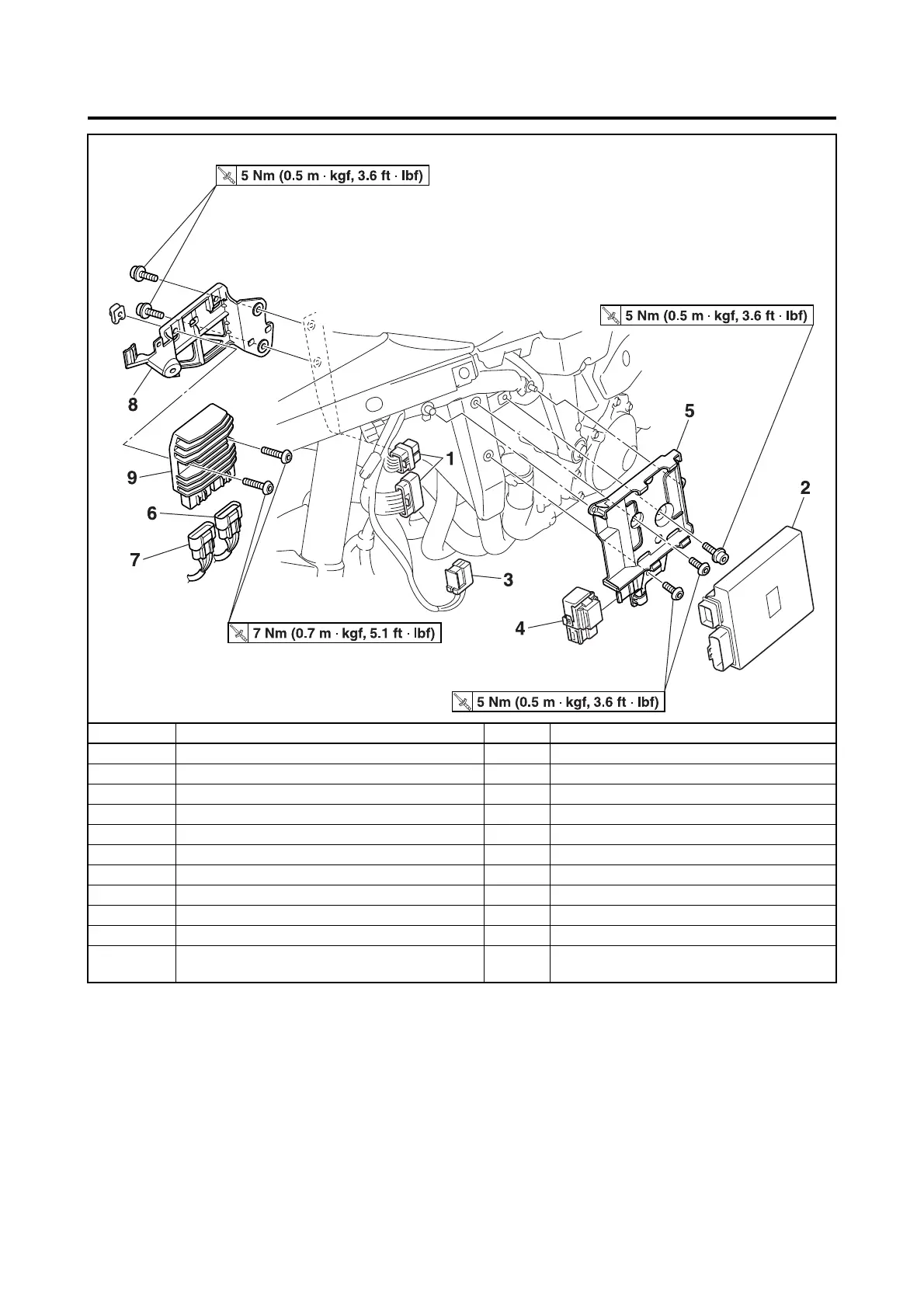

Removing the ECU and rectifier/regulator
Order Job/Parts to remove Q’ty Remarks
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
1 ECU coupler 2 Disconnect.
2ECU 1
3 Radiator fan motor relay coupler 1 Disconnect.
4 Radiator fan motor relay 1
5 ECU bracket 1
6 Rectifier/regulator coupler 1 Disconnect.
7 Stator coil lead coupler 1 Disconnect.
8 Rectifier/regulator bracket 1
9 Rectifier/regulator 1
For installation, reverse the removal proce-
dure.
