ENGINE REMOVAL
5-3
EAS23711
ENGINE REMOVAL

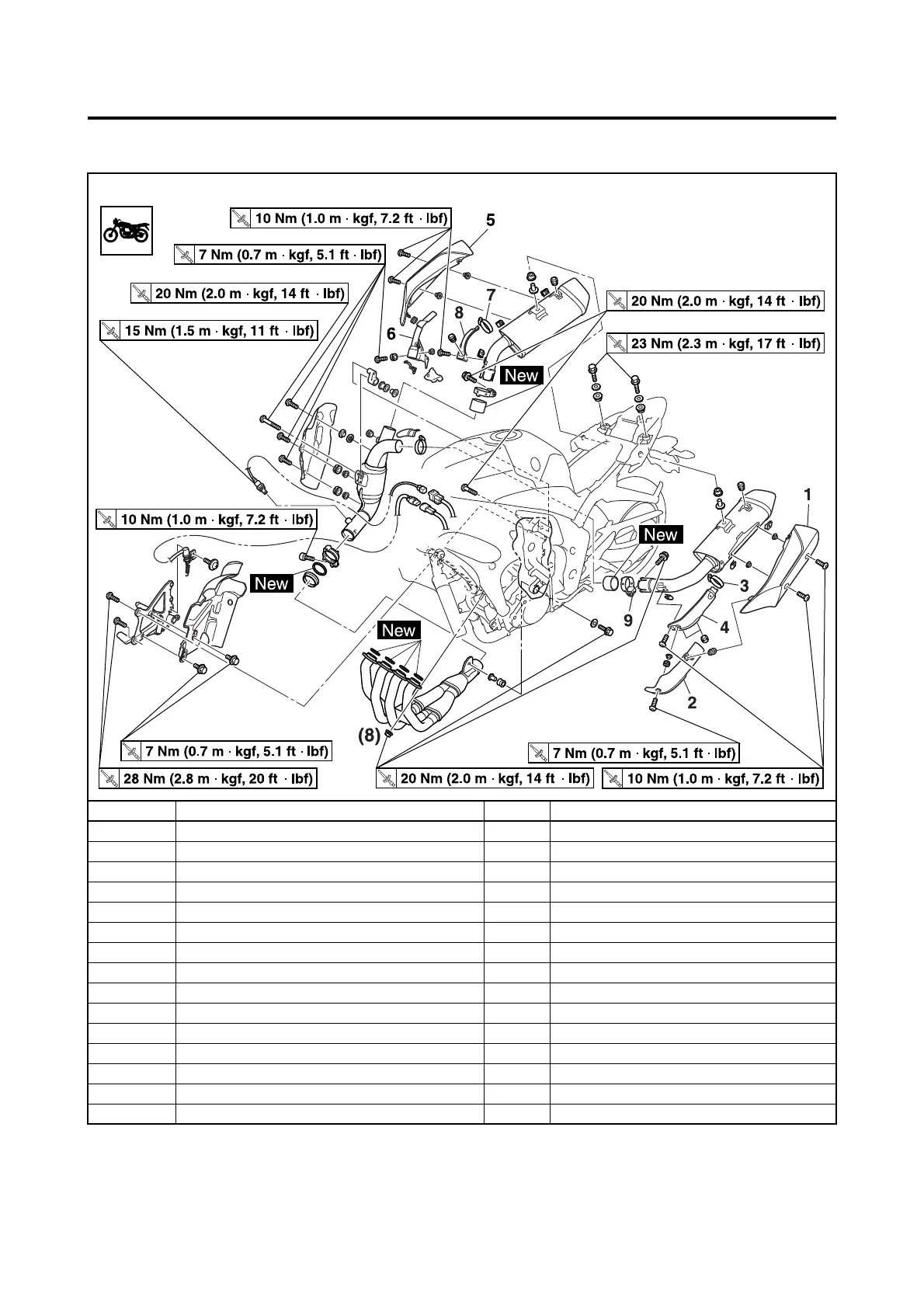

Removing the exhaust pipe and muffler
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to “GENERAL CHASSIS” on page 4-1.
Passenger seat Refer to “GENERAL CHASSIS” on page 4-1.
Upper tail cover Refer to “GENERAL CHASSIS” on page 4-1.
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Rear brake master cylinder Refer to “REAR BRAKE” on page 4-44.
Radiator lower bracket Refer to “RADIATOR” on page 6-1.
1 Left muffler cover 1
2 Left muffler pipe cover 1
3 Left muffler pipe protector clamp 1 Loosen.
4 Left muffler pipe protector 1
5 Right muffler cover 1
6 Right muffler pipe cover 1
7 Right muffler pipe protector clamp 1 Loosen.
8 Right muffler pipe protector 1
9 Left muffler clamp 1 Loosen.
To Next Page
