CAMSHAFTS
5-13
EAS23760
CAMSHAFTS

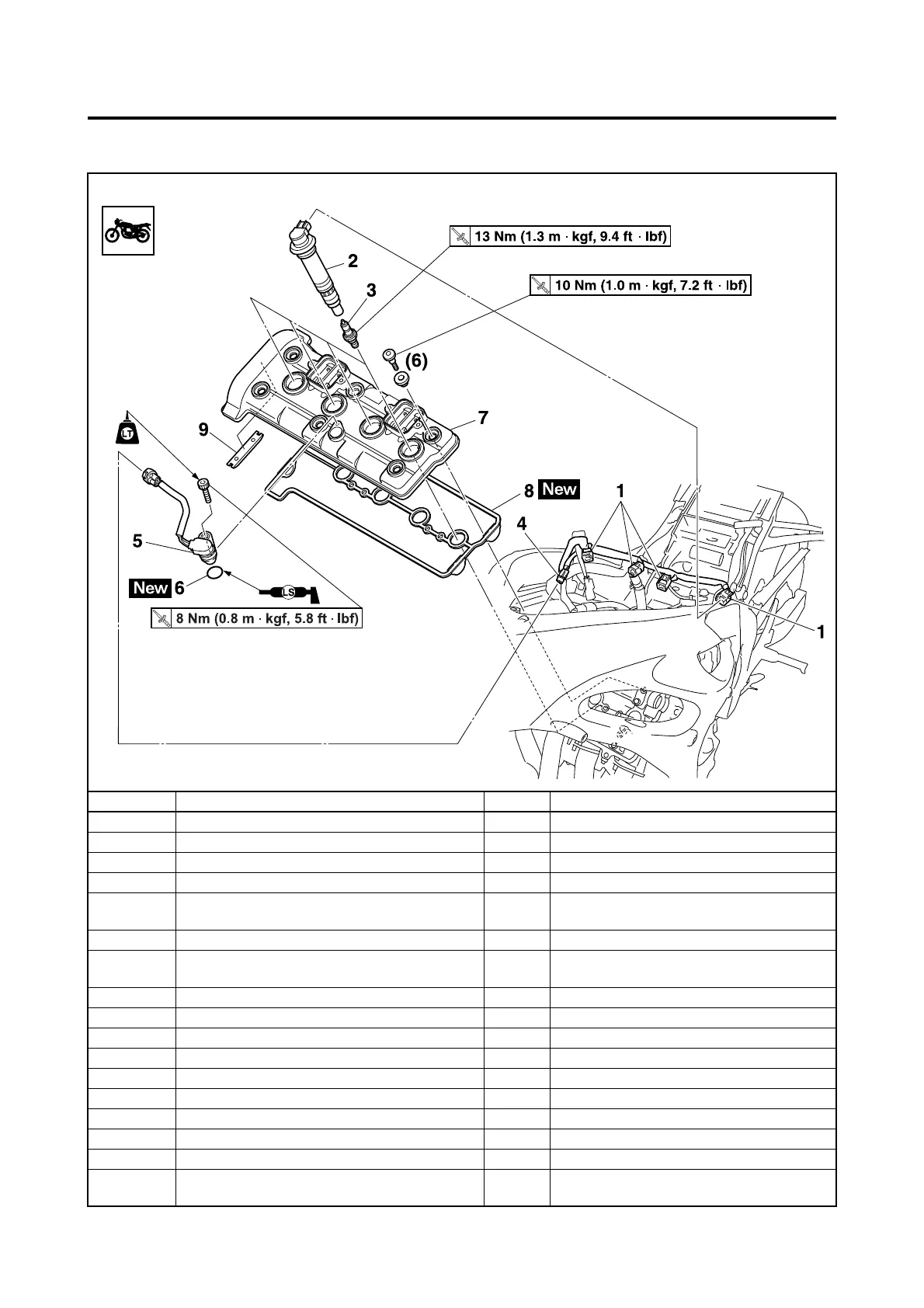

Removing the cylinder head cover
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Radiator Refer to “RADIATOR” on page 6-1.
Reed valve assembly
Refer to “AIR INDUCTION SYSTEM” on
page 7-21.
Throttle body Refer to “THROTTLE BODIES” on page 7-12.
Air filter case duct
Refer to “AIR INDUCTION SYSTEM” on
page 7-21.
1 Ignition coil coupler 4 Disconnect.
2 Ignition coil 4
3 Spark plug 4
4 Cylinder identification sensor coupler 1 Disconnect.
5 Cylinder identification sensor 1
6O-ring 1
7 Cylinder head cover 1
8 Cylinder head cover gasket 1
9 Timing chain guide (Top side) 1
For installation, reverse the removal proce-
dure.
To Next Page
