ENGINE REMOVAL
5-11

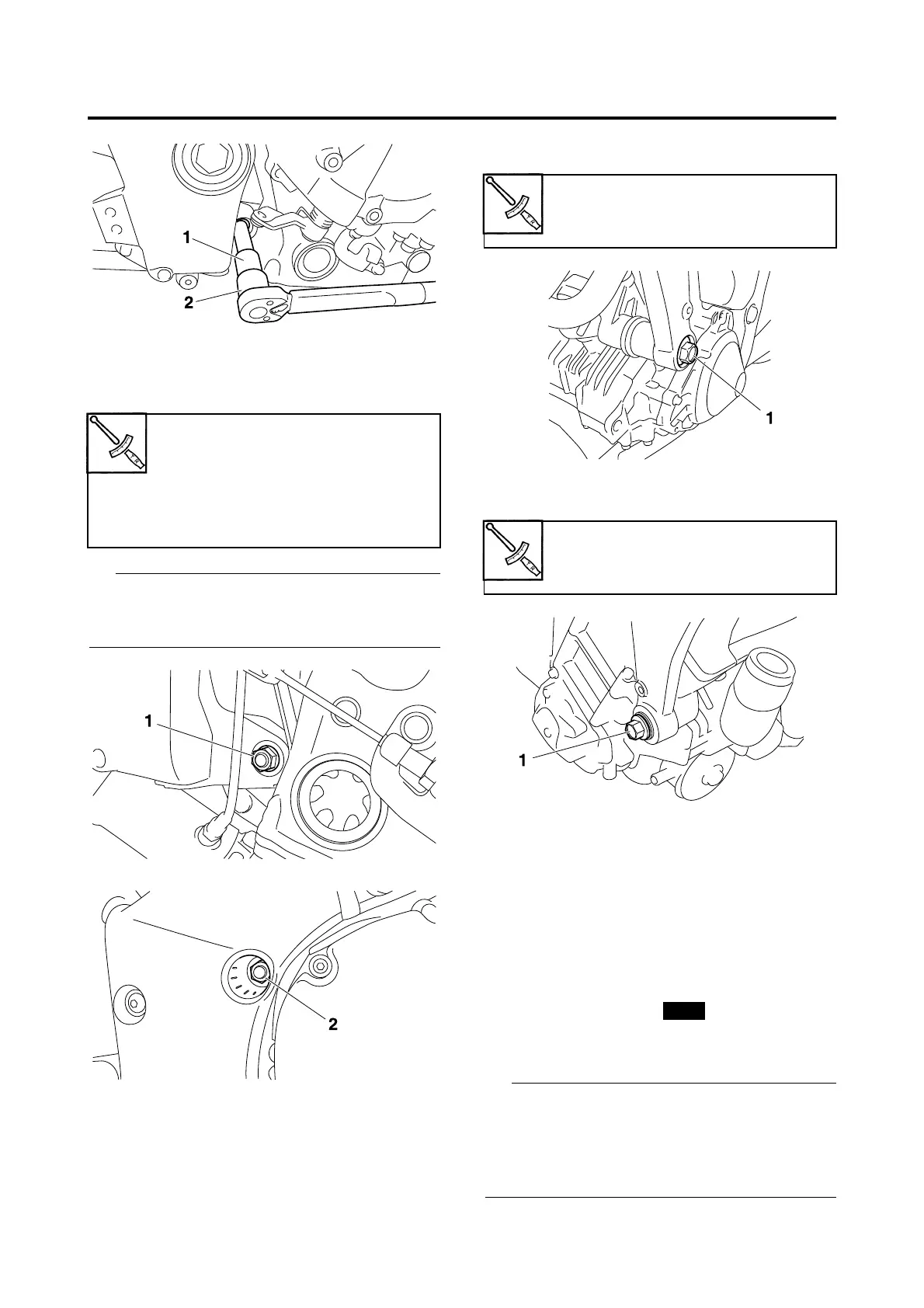

7. Tighten:
• Engine mounting nut (rear lower side) “1”
• Engine mounting nut (rear upper side) “2”
First tighten the engine mounting nut (rear
lower side), and then tighten the engine
mounting nut (rear upper side).
8. Tighten:
• Engine mounting bolt (front left side) “1”
9. Tighten:
• Engine mounting bolt (front right side) “1”
EAS14B1014
INSTALLING THE EXHAUST PIPE AND
MUFFLER
1. Install:
• Right footrest assembly
Refer to “ADJUSTING THE RIDER
FOOTRESTS” on page 4-15.
2. Install:
• Muffler gasket “1”
(to muffler)
• Muffler
• When installing the muffler gasket, set the
surface “a” with the carbon to the back.
• When installing the catalyst pipe assembly
and muffler clamp, tip of the tab “b” should
not contact the edge of the muffler gasket.
Engine mounting nut (rear
lower side)
51 Nm (5.1 m·kgf, 37 ft·lbf)
Engine mounting nut (rear
upper side)
51 Nm (5.1 m·kgf, 37 ft·lbf)
Engine mounting bolt (front left
side)
70 Nm (7.0 m·kgf, 50 ft·lbf)
Engine mounting bolt (front
right side)
70 Nm (7.0 m·kgf, 50 ft·lbf)
