ELECTRIC STARTER
5-46

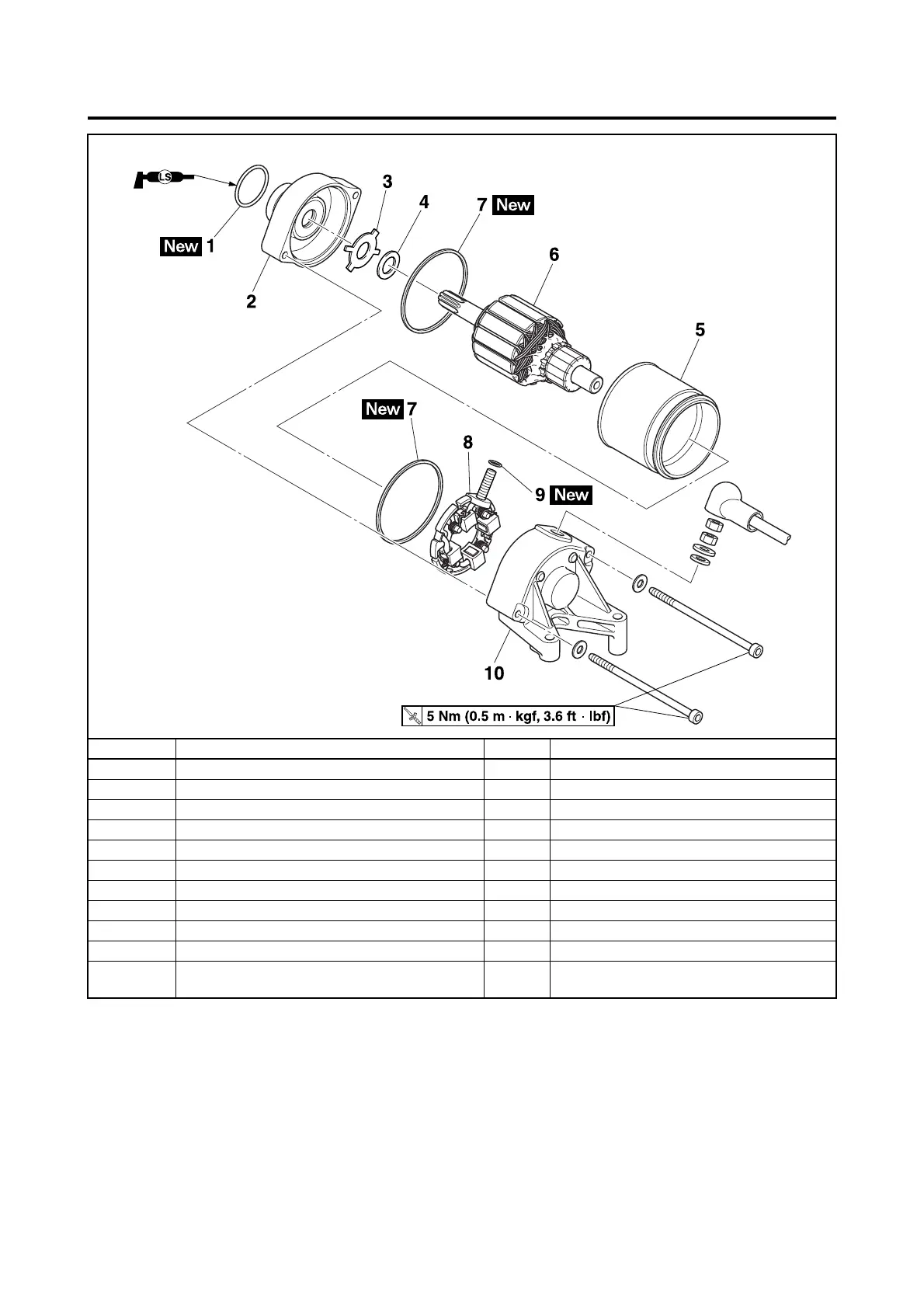

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1O-ring 1
2Front cover 1
3 Lock washer 1
4 Washer 1
5 Starter motor yoke 1
6 Armature assembly 1
7Gasket 2
8 Brush holder 1
9O-ring 1
10 Rear cover 1
For installation, reverse the removal proce-
dure.
