REAR BRAKE
4-48

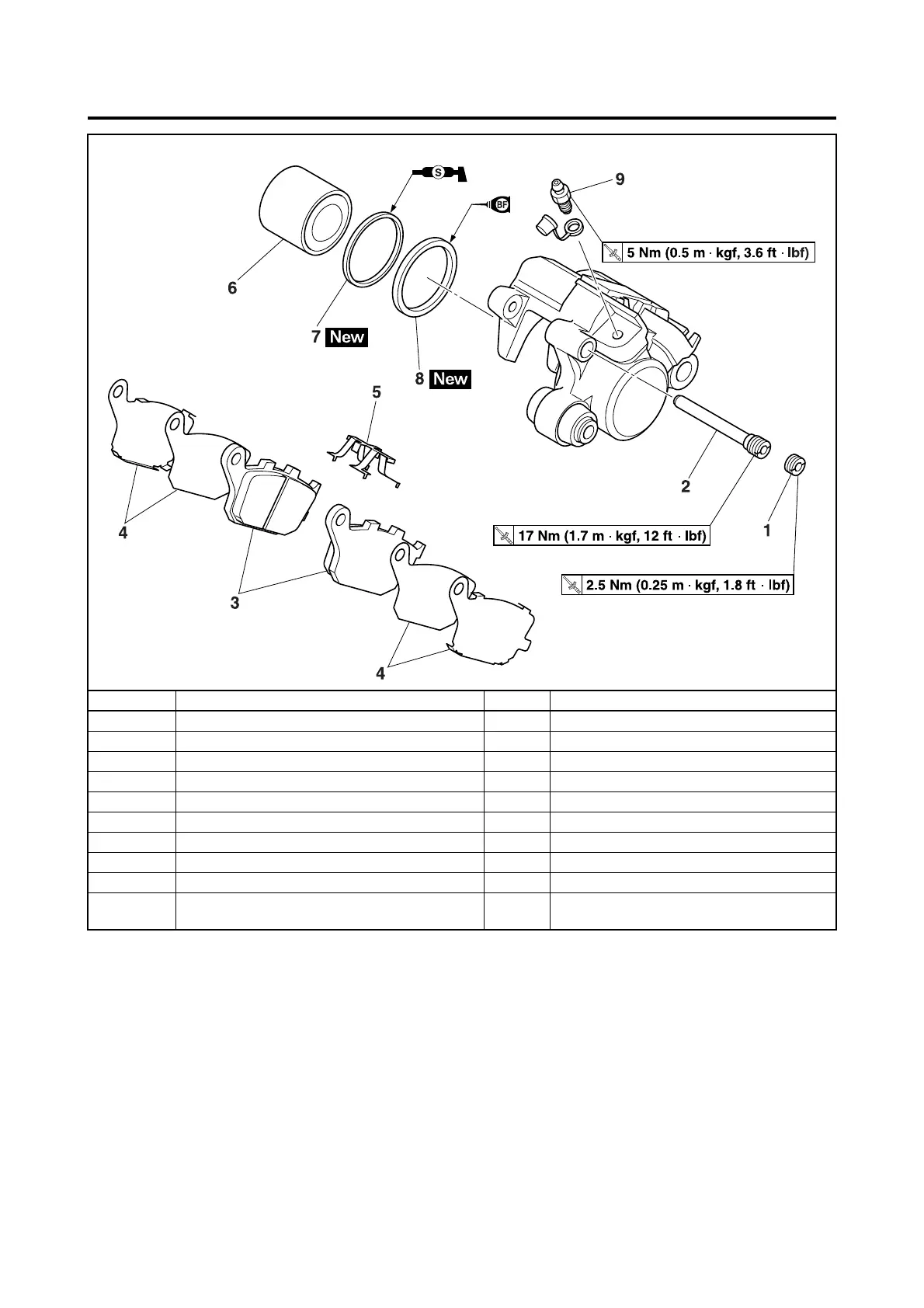

Disassembling the rear brake caliper
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad pin 1
3 Brake pad kit 1
4 Brake pad shim 4
5 Brake pad spring 1
6 Brake caliper piston 1
7 Brake caliper piston dust seal 1
8 Brake caliper piston seal 1
9 Bleed screw 1
For installation, reverse the removal proce-
dure.
