REAR WHEEL
4-25
EAS22020
REAR WHEEL

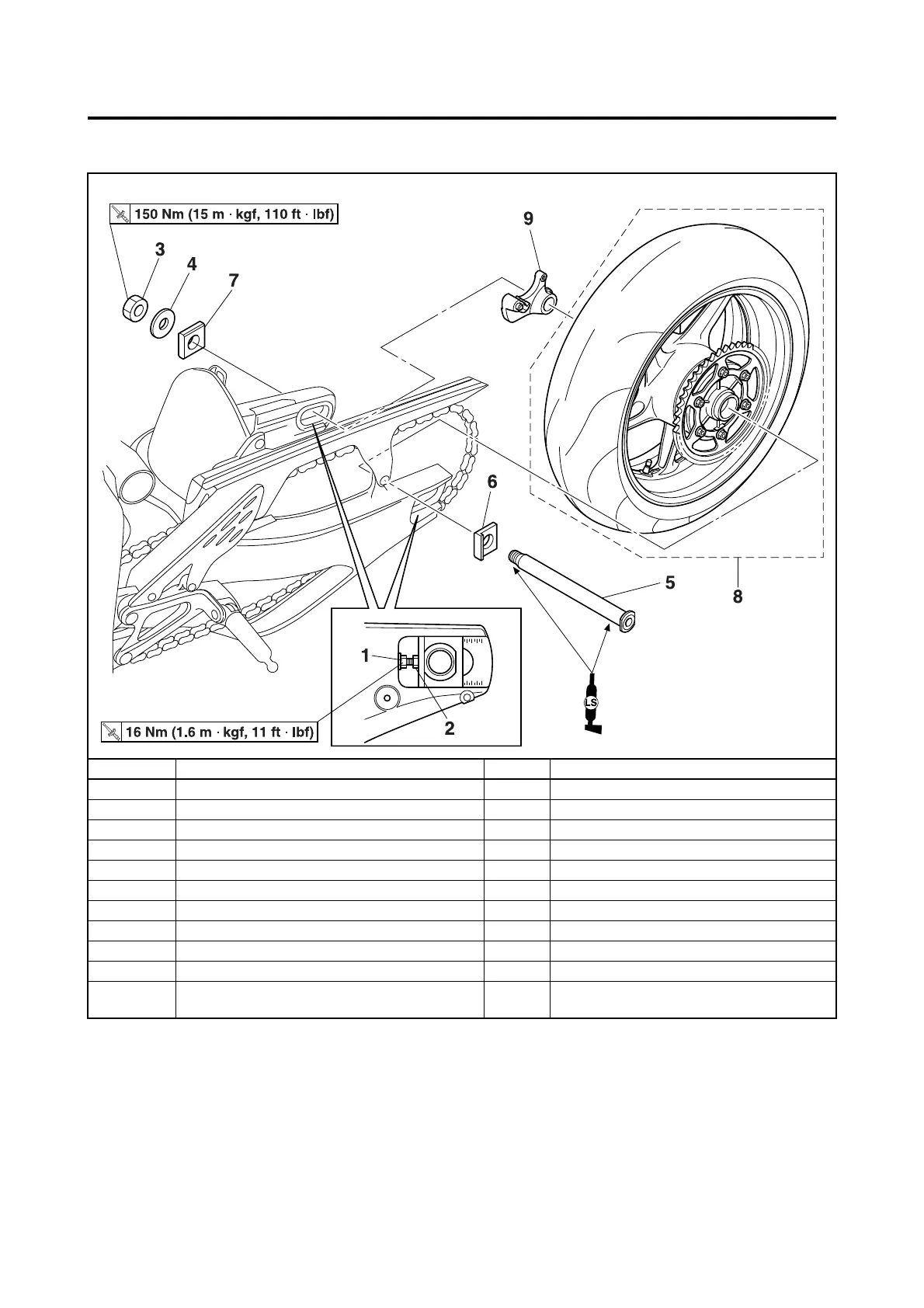

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper Refer to “REAR BRAKE” on page 4-44.
1 Locknut (left and right) 2 Loosen.
2 Adjusting bolt (left and right) 2 Loosen.
3 Rear wheel axle nut 1
4 Washer 1
5 Rear wheel axle 1
6 Adjusting block (left) 1
7 Adjusting block (right) 1
8 Rear wheel 1
9 Rear brake caliper bracket 1
For installation, reverse the removal proce-
dure.
