CHAIN DRIVE
4-85
EAS23400
CHAIN DRIVE

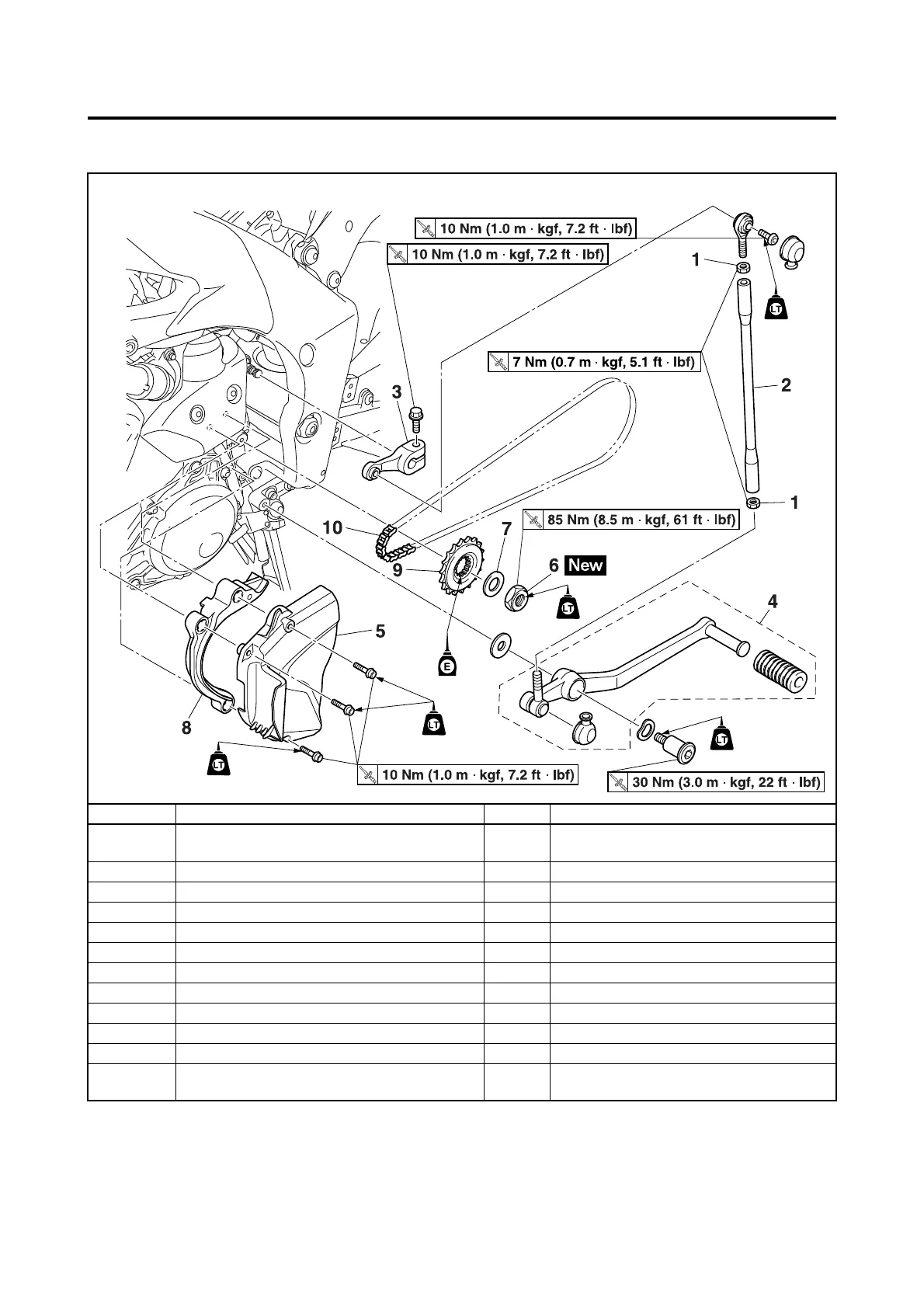

Removing the drive sprocket and drive chain
Order Job/Parts to remove Q’ty Remarks
Drive chain
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-21.
1 Locknut 2
2 Shift rod 1
3 Shift arm 1
4 Shift pedal 1
5 Drive sprocket cover 1
6 Drive sprocket nut 1
7 Washer 1
8 Drive chain guide (drive sprocket side) 1
9 Drive sprocket 1
10 Drive chain 1
For installation, reverse the removal proce-
dure.
