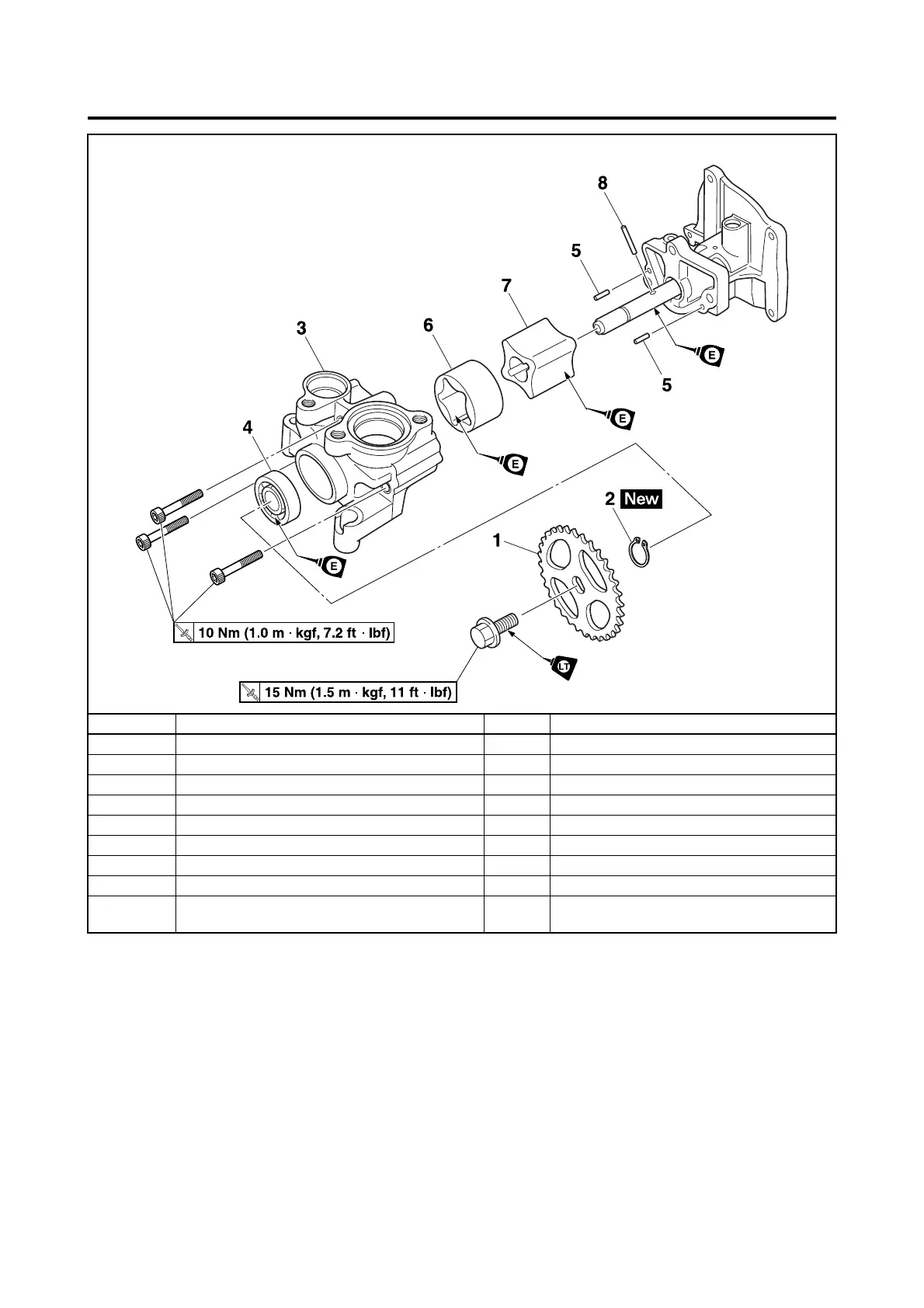

OIL PUMP
5-52
Disassembling the oil pump
Order Job/Parts to remove Q’ty Remarks
1 Oil/water pump driven sprocket 1
2 Circlip 1
3 Oil pump housing 1
4 Bearing 1
5Dowel pin 2
6 Oil pump outer rotor 1
7 Oil pump inner rotor 1
8Pin 1
For installation, reverse the removal proce-
dure.
