GENERAL CHASSIS
4-15
d. Slide the upper tail cover forward and
remove.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS14B1002

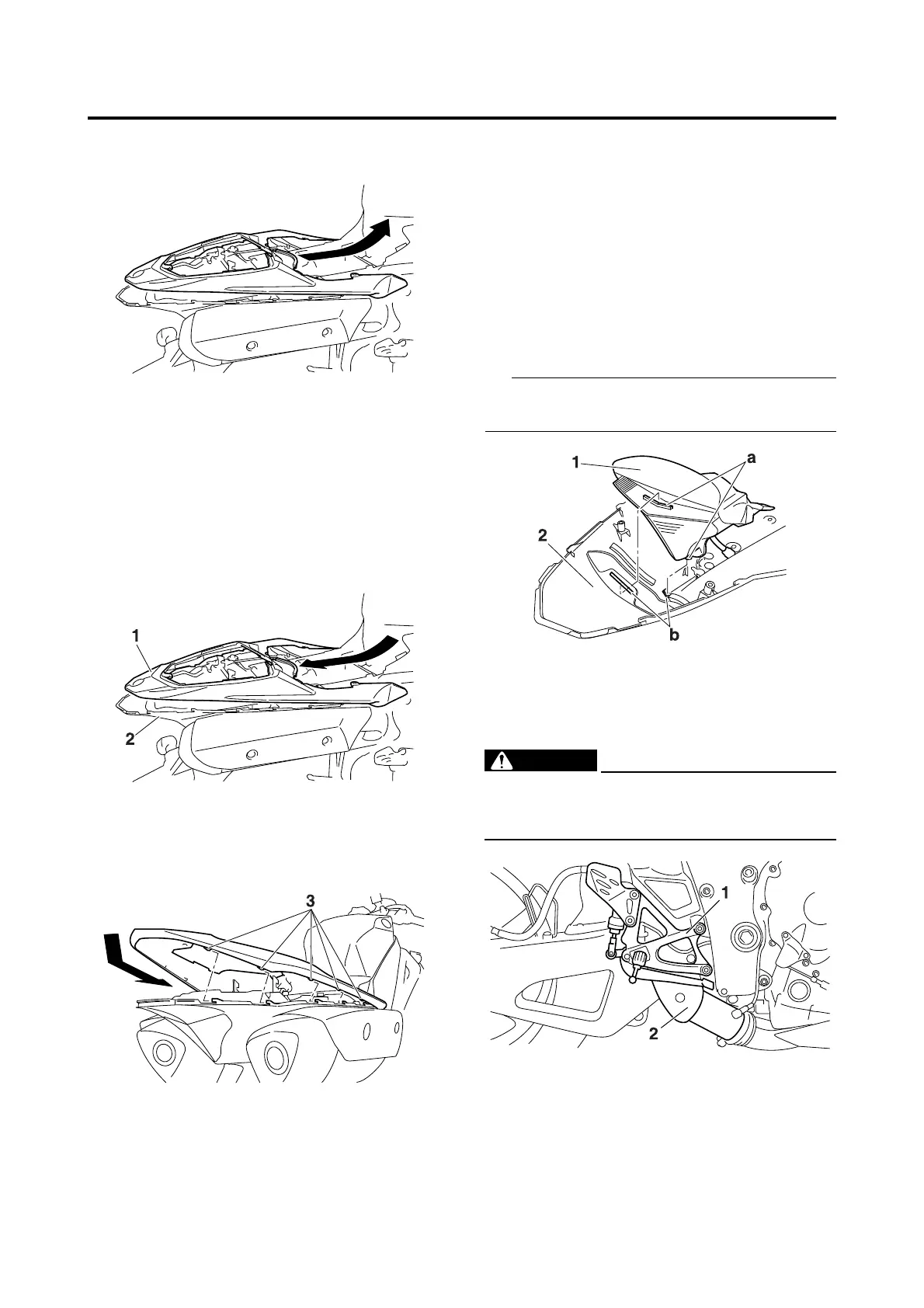

INSTALLING THE UPPER TAIL COVER
1. Install:
• Upper tail cover “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the upper tail cover from the front of
the lower tail cover “2” and slide to the
back.
b. Put the upper tail cover down, align the
tabs “3” of the upper tail cover to the lower
tail cover tabs, and then slide the upper tail
cover forward.
c. Install the quick fasteners on the upper tail
cover.
d. Install the bolt on the upper tail cover.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Passenger seat
Refer to “GENERAL CHASSIS” on page
4-1.
• Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
EAS14B1054
INSTALLING THE TAIL/BRAKE LIGHT
1. Install:
• Tail/brake light “1”
Fit the tail/brake light tabs “a” into the holes “b”
of the lower tail cover “2”.
EAS14B1056
ADJUSTING THE RIDER FOOTRESTS
1. Remove:
• Rider footrest (right and left)
EWA14B1018
When removing the right rider footrest “1”,
be careful not to burn with the exhaust
chamber “2”.
2. Adjust:
• Rider footrest position (right and left)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the rider footrest “1” bolts.
To Next Page
