ELECTRICAL COMPONENTS
8-140
2. Check:
• Rectifier/regulator output voltage
Out of specification → Replace the recti-
fier/regulator.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Set the engine tachometer to the ignition
coil of cylinder #1.

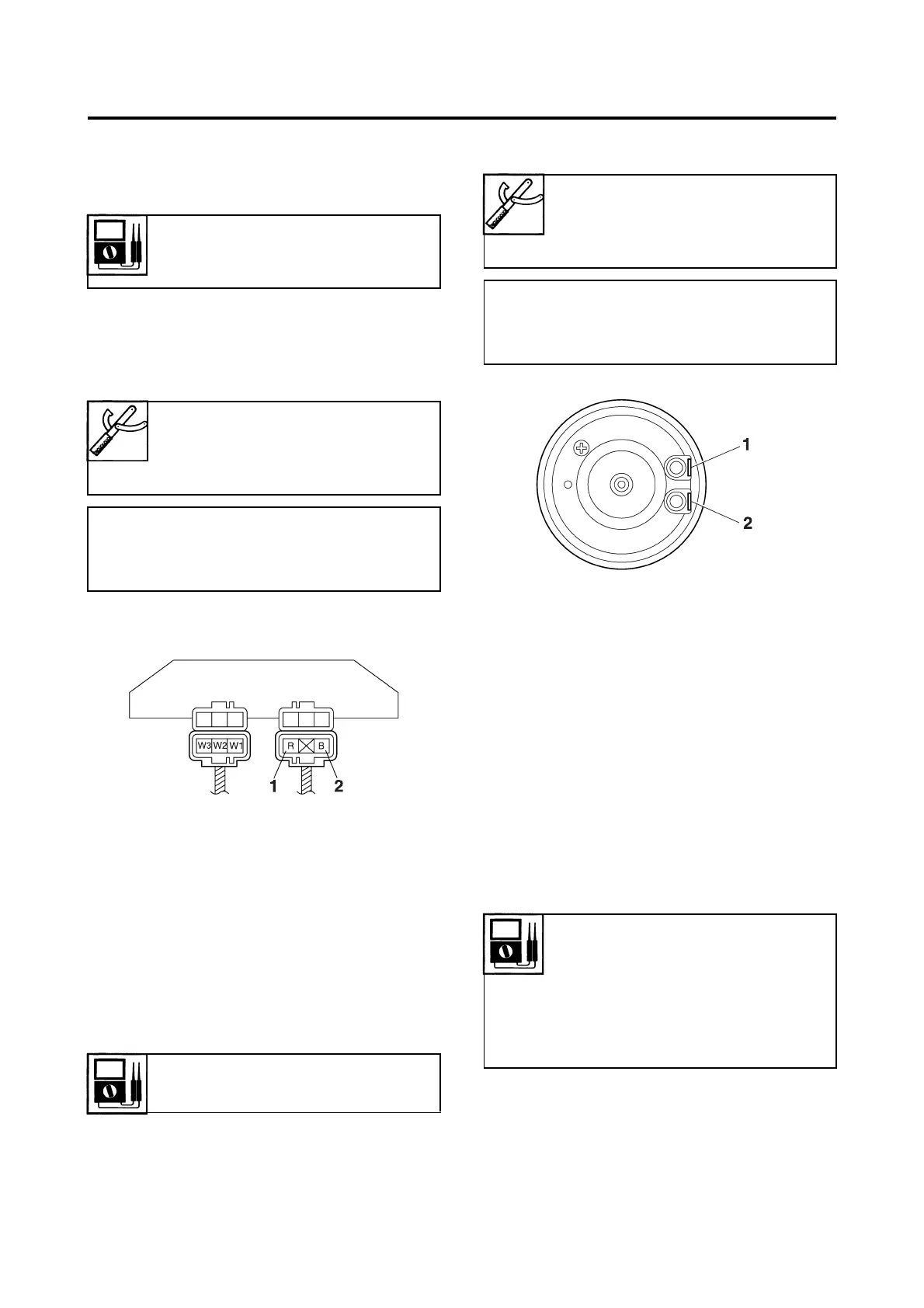

b. Connect the pocket tester (DC 20 V) to the
rectifier/regulator coupler as shown.
c. Start the engine and let it run at approxi-
mately 5000 r/min.
d. Measure the rectifier/regulator output volt-
age.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28180
CHECKING THE HORN
1. Check:
• Horn resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Disconnect the horn leads from the horn
terminals.
b. Connect the pocket tester (Ω × 1) to the
horn terminals.
c. Measure the horn resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Check:
• Horn sound
Faulty sound → Replace.
EAS28190
CHECKING THE OIL LEVEL SWITCH
1. Drain:
• Engine oil
2. Remove:
• Oil level switch
(from the oil pan)
3. Check:
• Oil level switch resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 100) to the
oil level switch terminal as shown.
Rectifier/regulator output volt-
age
14.2–14.8 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Red “1”
• Negative tester probe
Black “2”
Coil resistance
1.07–1.11 Ω at 20 °C (68 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Horn terminal “1”
• Negative tester probe
Horn terminal “2”
Oil level switch
Maximum level position resis-
tance
484–536 Ω
Minimum level position resis-
tance
114–126 Ω
