13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 5-13
Maintenance and Assembly Drawings Section 5

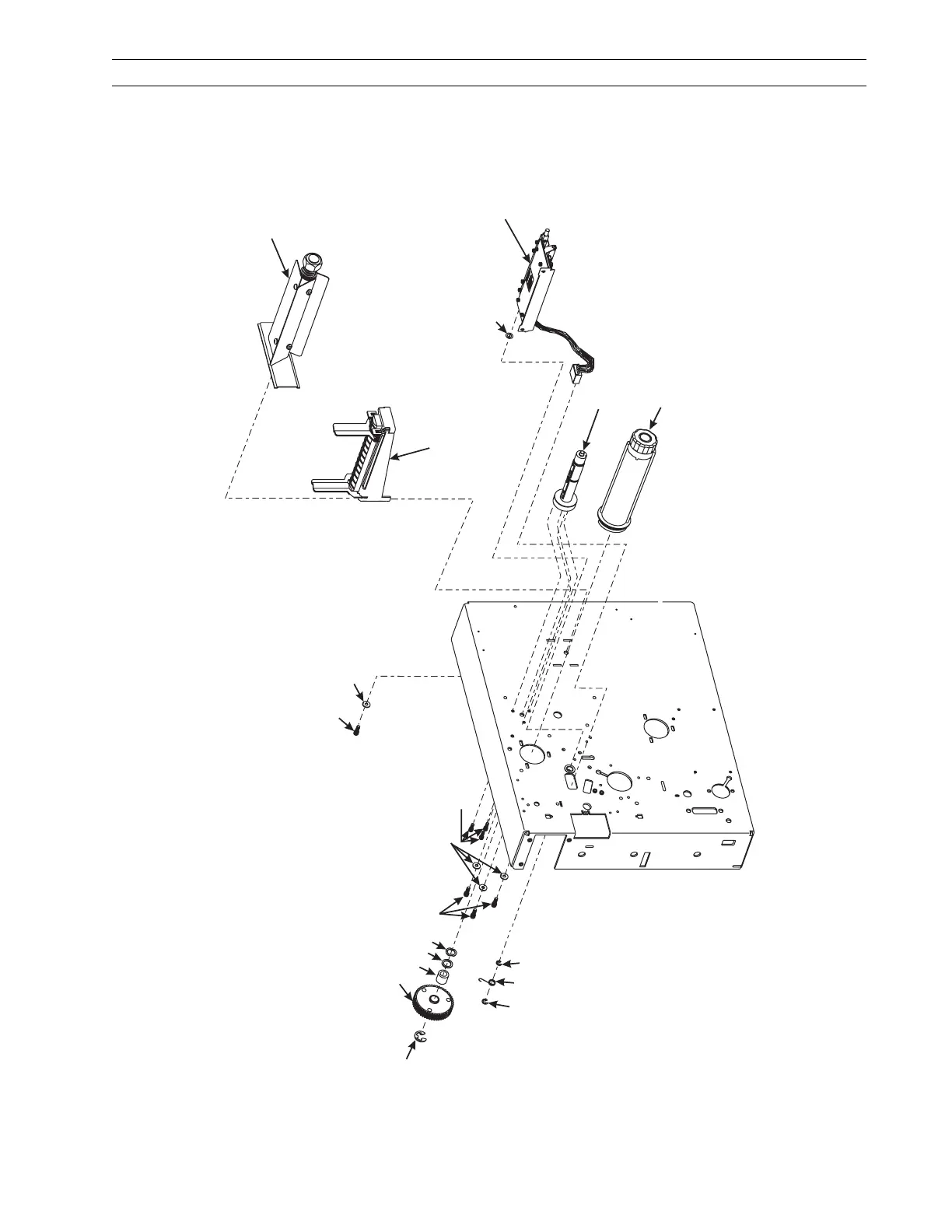

Figure 5-4. Print Mechanism (View 2)
8
2
9
4
7
6
5
3
1
14
13
15
See Specific Printer
Printhead Support
Assembly Drawing
See Media Supply Hanger
Assembly
Optional Media
Supply Spindle
10
11
12
16
9
