152 ZXP Series 9 Card Printer Service Manual P1086708-001
Setting Custom Card Speciîšżcations
Adjustments
Partial Transfer
Partial transfer is usually caused by lack of energy being transferred to the card (i.e., the
temperatures are too low or the speeds are too fast).

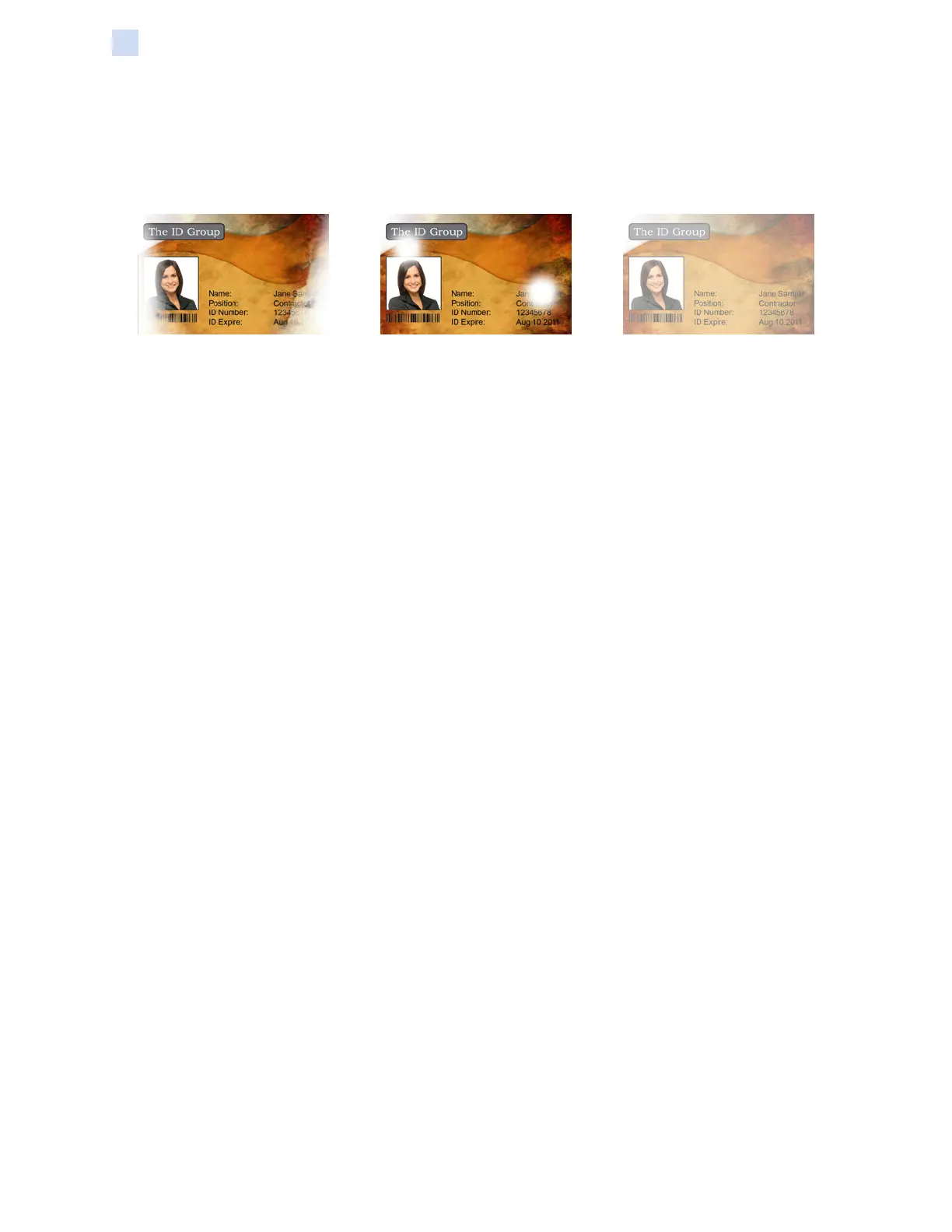

Light or missing transfer on
the sides
Spotty transfer anywhere on
the card
Light transfer on the entire
card
Front of card
Increase Front Transfer Temperature
Step 1. From the Card Speciîšżcations window, make a note of the default front transfer
temperature settings.
Step 2. Increase the appropriate (Single or Double side) front transfer temperature by 5.
Step 3. Click OK.
Step 4. Print a test card (see “Printing a Test Card” on page 42).
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement after a number of cycles, return the value to
its default setting and go to next correction.
Decrease Transfer Input Speed
Step 1. From the Card Speciîšżcations window, make a note of the default transfer input speed
settings.
Step 2. Decrease the appropriate (Single or Double side) transfer input speed by 0.1.
Step 3. Click OK.
Step 4. Print a test card (see “Printing a Test Card” on page 42).
Step 5. Examine the test card.
y If there is noticeable improvement, repeat Steps 2–4 until the problem is corrected
or there is no more improvement.
y If there is no noticeable improvement after a number of cycles, return the value to
its default setting and go to next correction.
To Next Page
