P1086708-001 ZXP Series 9 Card Printer Service Manual 363
Replacement Procedures for the Laminator
Procedures: 24V Heater Fans
24V Heater Fans
Exhaust Fan (Upper)
For replacement, use Kit Assy Fan 24V 105936G-503. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

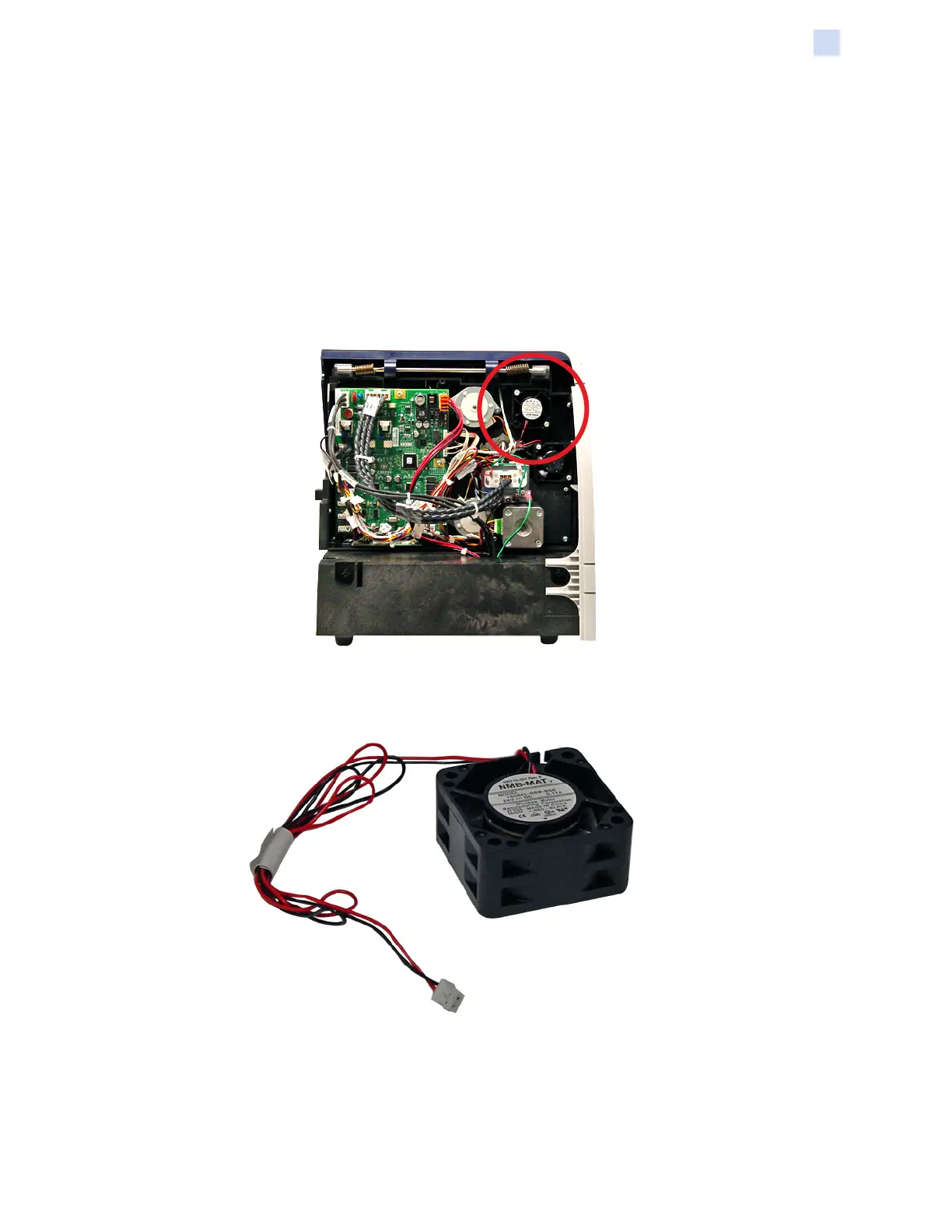

Step 1. Cut the associated zip ties, disconnect the fan plug from the laminator controller
PCBA (J12). With a TORX T10 driver, remove the two screws holding the exhaust
fan (circled below) in place. Note the orientation of the fan.
Step 2. With a TORX T10 driver, remove the two screws holding the exhaust fan (circled
below) in place. Note the orientation of the fan.
