P1086708-001 ZXP Series 9 Card Printer Service Manual 411
Replacement Procedures for the Laminator
Procedures: Base-Frame Separation
Base-Frame Separation

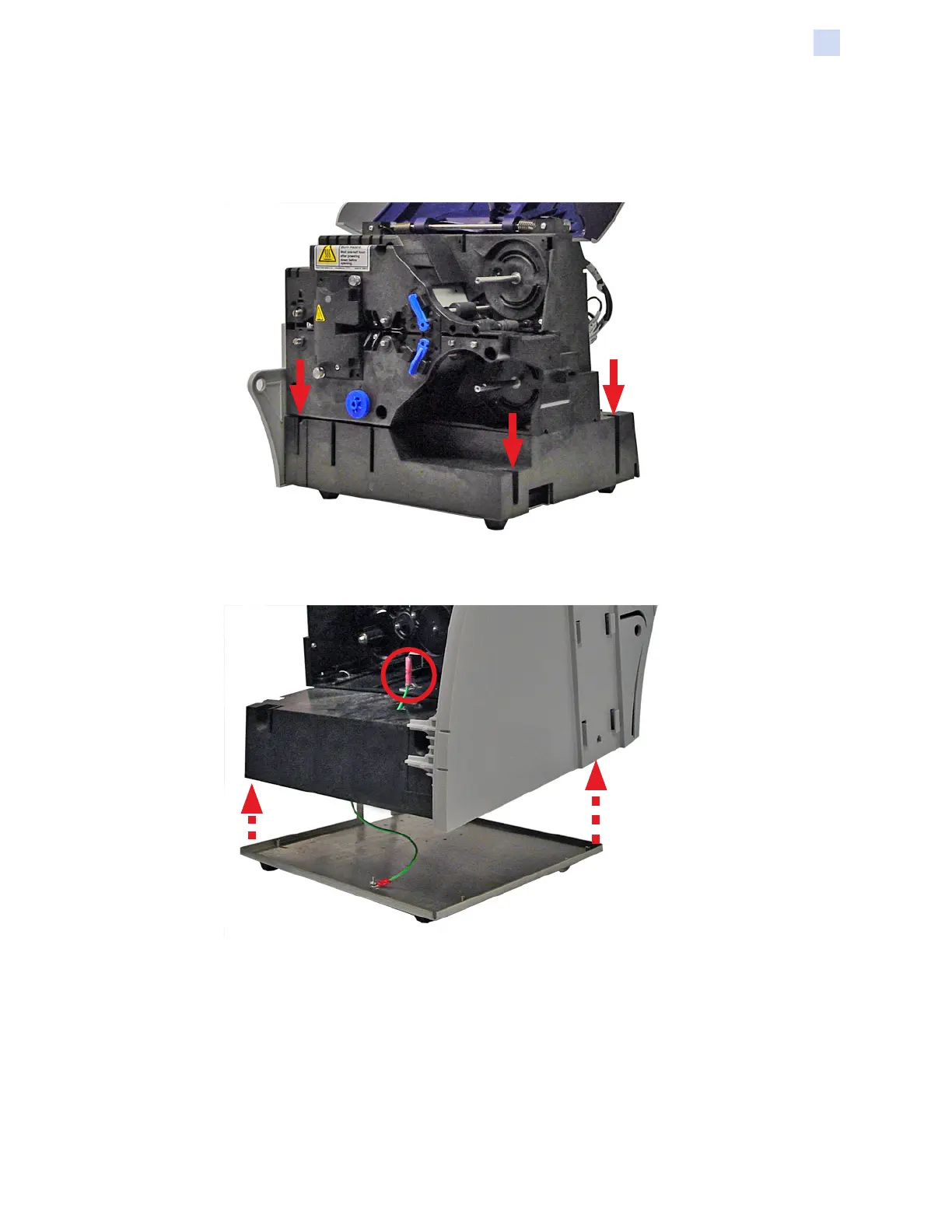

Step 1. With a TORX T10 Driver, remove the four screws holding the frame and base
assembly to the baseplate (arrows below).
Step 2. Separate the frame and base assembly from the baseplate. If not already
disconnected, disconnect the ground from the bracket (circled below).
Step 3. Turn the frame and base assembly on its side.
