P1086708-001 ZXP Series 9 Card Printer Service Manual 299
Replacement Procedures for the Printer
Procedures: Ribbon Payout Sensor
Ribbon Payout Sensor
For replacement, use Kit C/A Gap Sensor 105936G-018. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

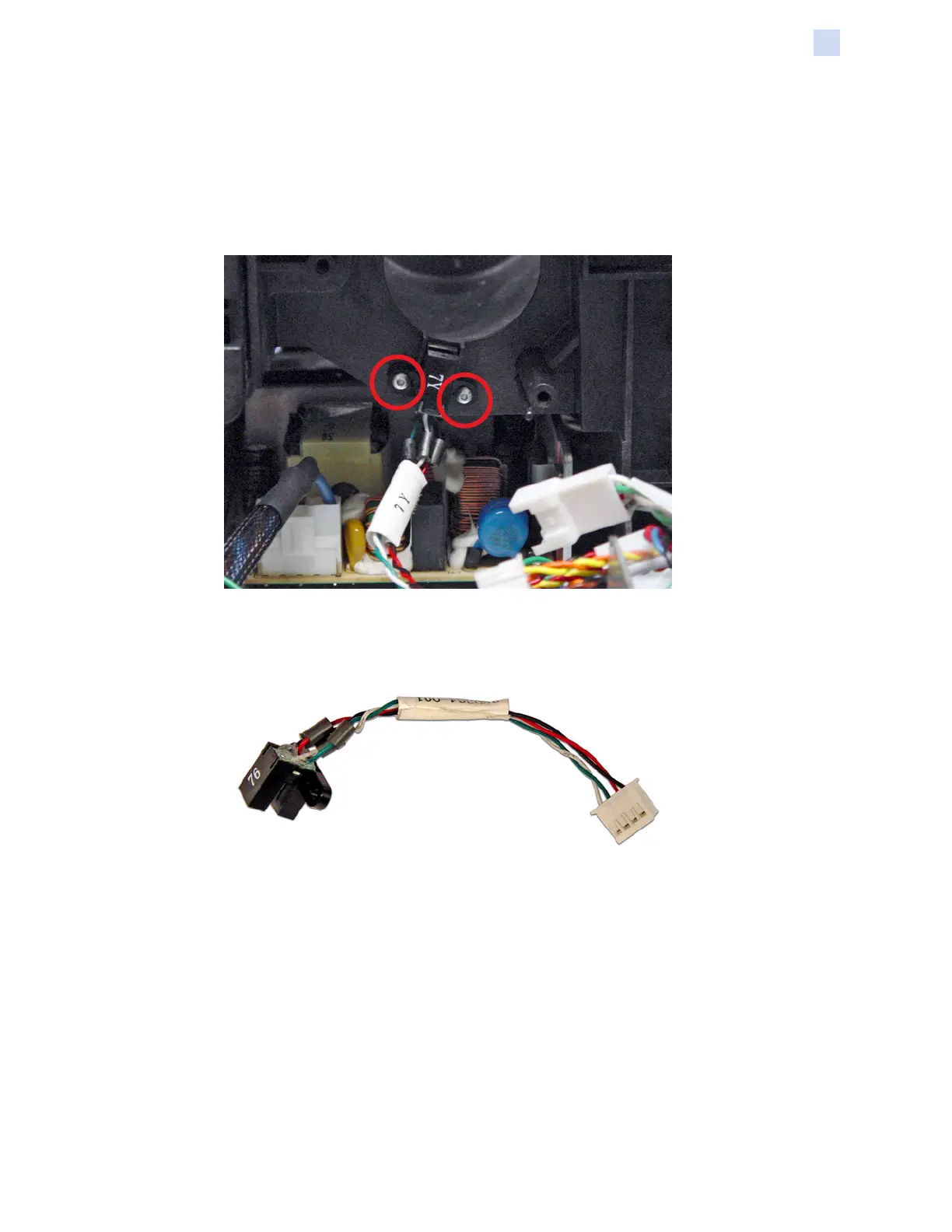

Step 1. With a TORX T6 driver, remove the two screws (circled below) holding the ribbon
payout sensor in place.
Step 2. Disconnect the plug P13A.
Step 3. Remove the ribbon payout sensor.
