Zebra ZXP 9 Series User Manual

264 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: InTM Take-Up Sensor
InTM Take-Up Sensor
For replacement, use Kit C/A Gap Sensor 105936G-018. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

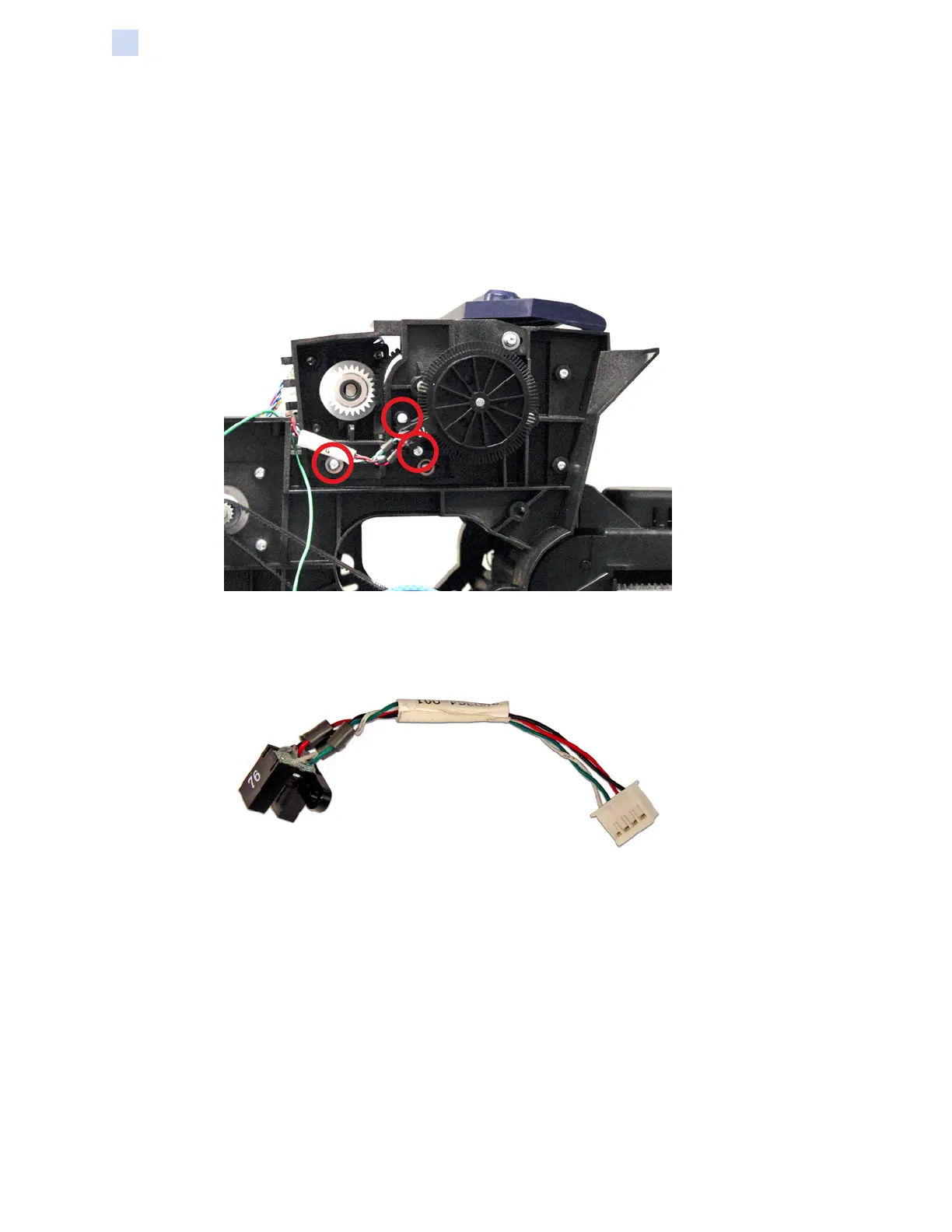

Step 1. With a TORX T6 driver, remove the two screws (circled below) holding the ribbon
payout encoder sensor in place.
Step 2. Disconnect the plug P24B (arrow above).
Step 3. Remove the InTM take-up sensor.
Step 4. Set the InTM take-up sensor aside.
