P1086708-001 ZXP Series 9 Card Printer Service Manual 249
Replacement Procedures for the Printer
Procedures: Halogen Lamp Control PCBA
Halogen Lamp Control PCBA
For replacement, use Kit PCBA Halogen Lamp Control 105936G-025. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.

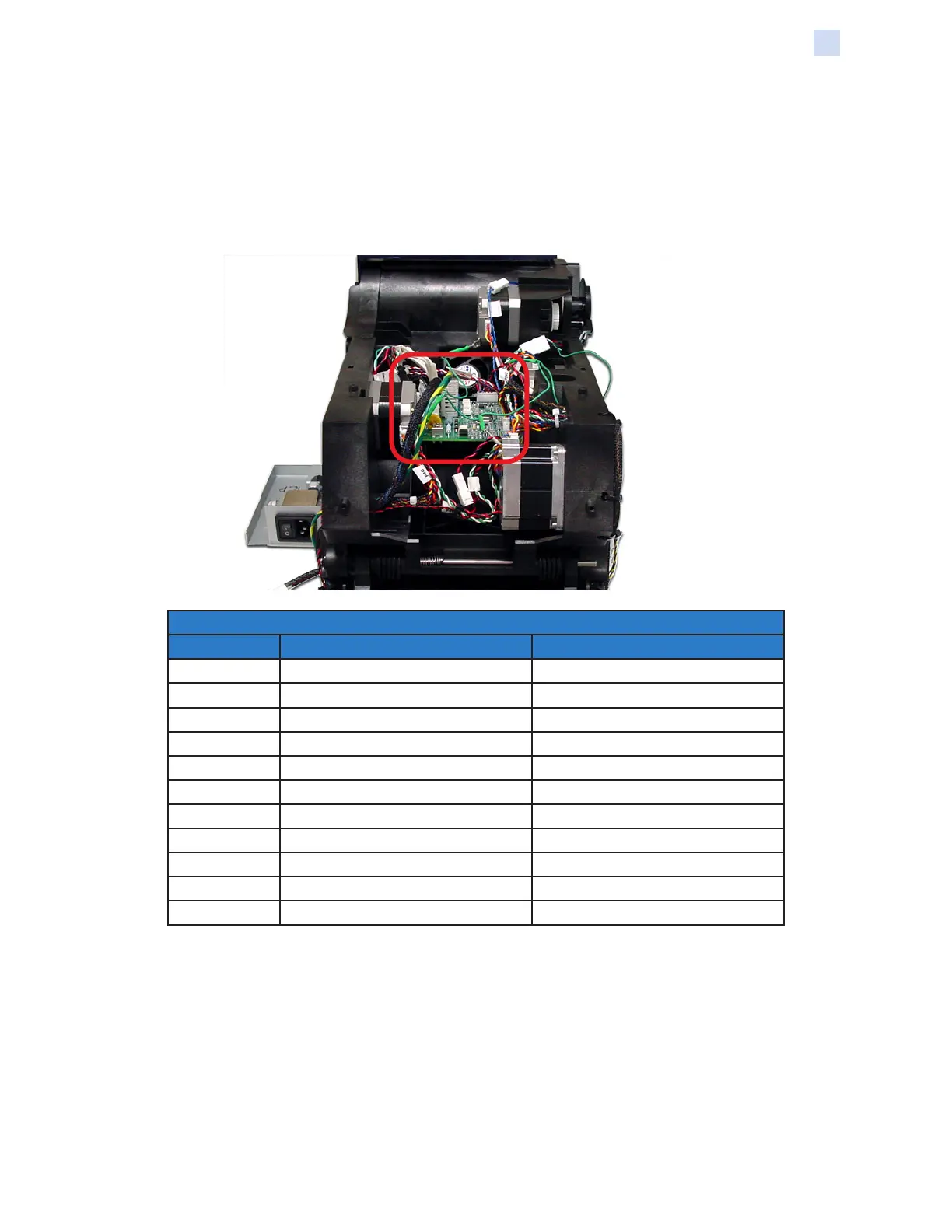

Step 1. Locate the halogen lamp control PCBA and unplug the attached cable connectors
(see table).
Halogen Lamp Control PCBA Connections
Connector PCBA ID Functional Description
J1 HOST SER TTL Debug
J2 BOT LAMP Bottom Halogen Lamp
J3 TOP LAMP Top Halogen Lamp
J4 - Thermal Fuse
J5 - -
J6 TOP THERMOPILE Top Thermopile
J7 BOTTOM THERMOPILE Bottom Thermopile
J8 AC IN AC Power In
J9 HOST 12C HCB to Host Communication
J10 DEBUG RS232 Debug Development ONLY
J11 BKG DBG Debug Development ONLY
