290 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Tricolor Sensor
Tricolor Sensor
For replacement, use Kit Tricolor Sensor 105936G-024. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
Removal

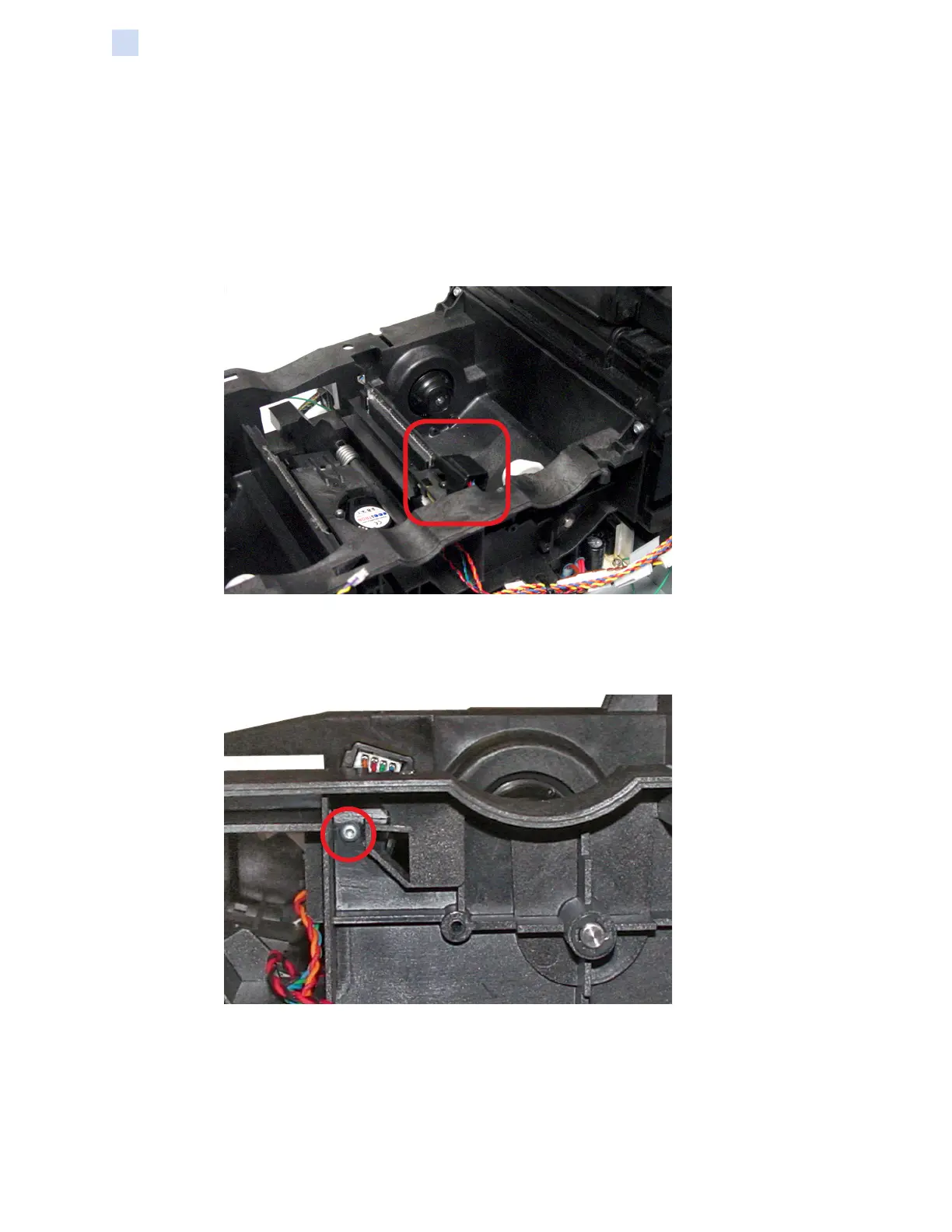

Step 1. Locate the tricolor sensor assembly (circled below).
Step 2. Remove the detector.
a. With a TORX T6 driver, remove the screw (circled below) holding the detector
and bracket in place.
b. Carefully lift the detector up and out of the printer.
