378 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)
Cassette Latch Assembly (Top & Bottom)
For replacement, use Kit Lam Upper Cas Latch 105936G-505, Kit Lam Lower Cas Latch
105936G-506 Contact Zebra Customer Service at +01 877-275-9327 for ordering information.
Removal

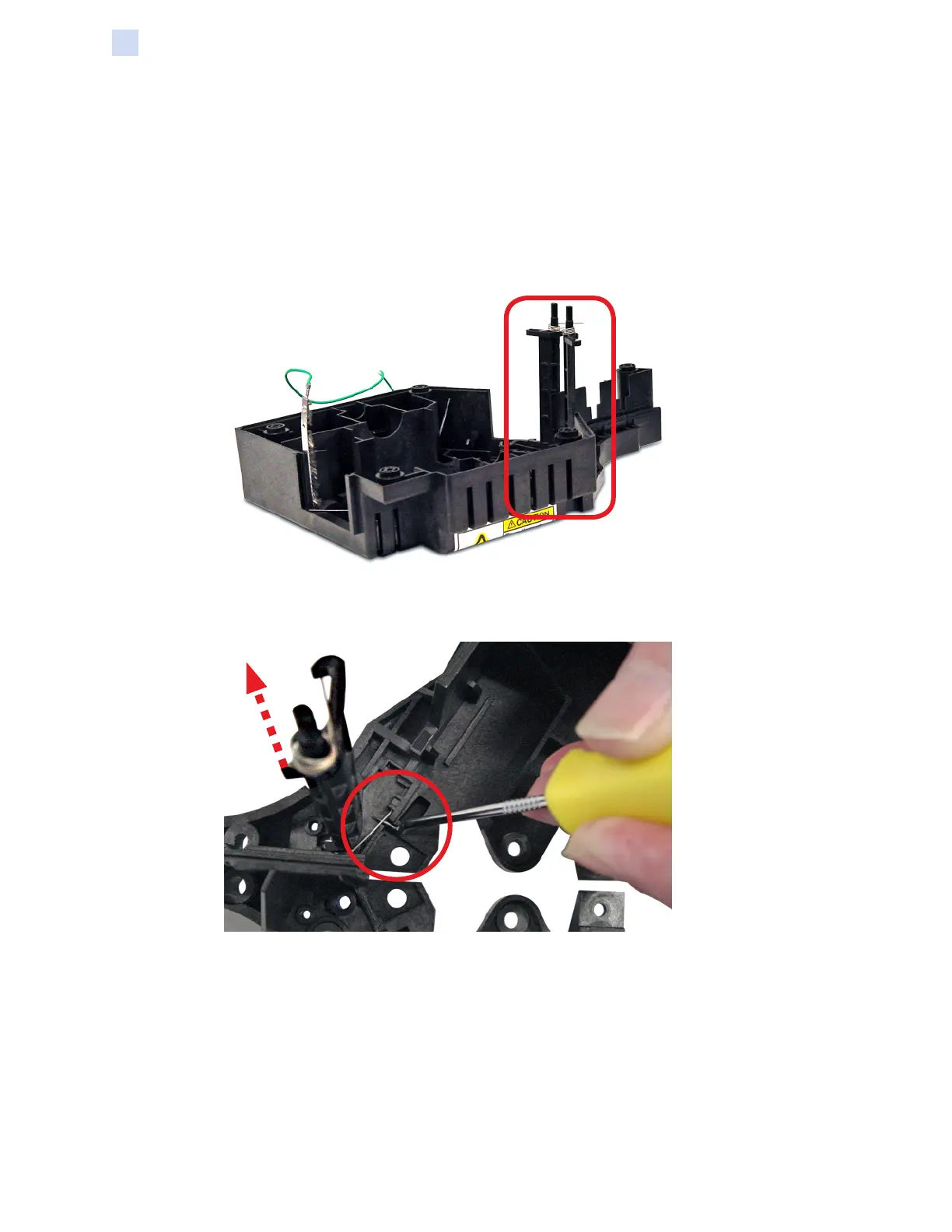

Step 1. Locate the cassette latch assemblies.
Step 2. With a spring hook tool, carefully release the upper cassette torsion spring (circled
below), and slide the cassette latch and spring out of the frame.
Step 3. With a spring hook tool, carefully release the lower cassette torsion spring, and slide
the cassette latch and spring out of the frame.
