P1086708-001 ZXP Series 9 Card Printer Service Manual 401
Replacement Procedures for the Laminator
Procedures: Card Entry Sensor Cable Assembly
Card Entry Sensor Cable Assembly
For replacement, use Kit Cbl Assy Sensor Card Entry 105936G-532. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.

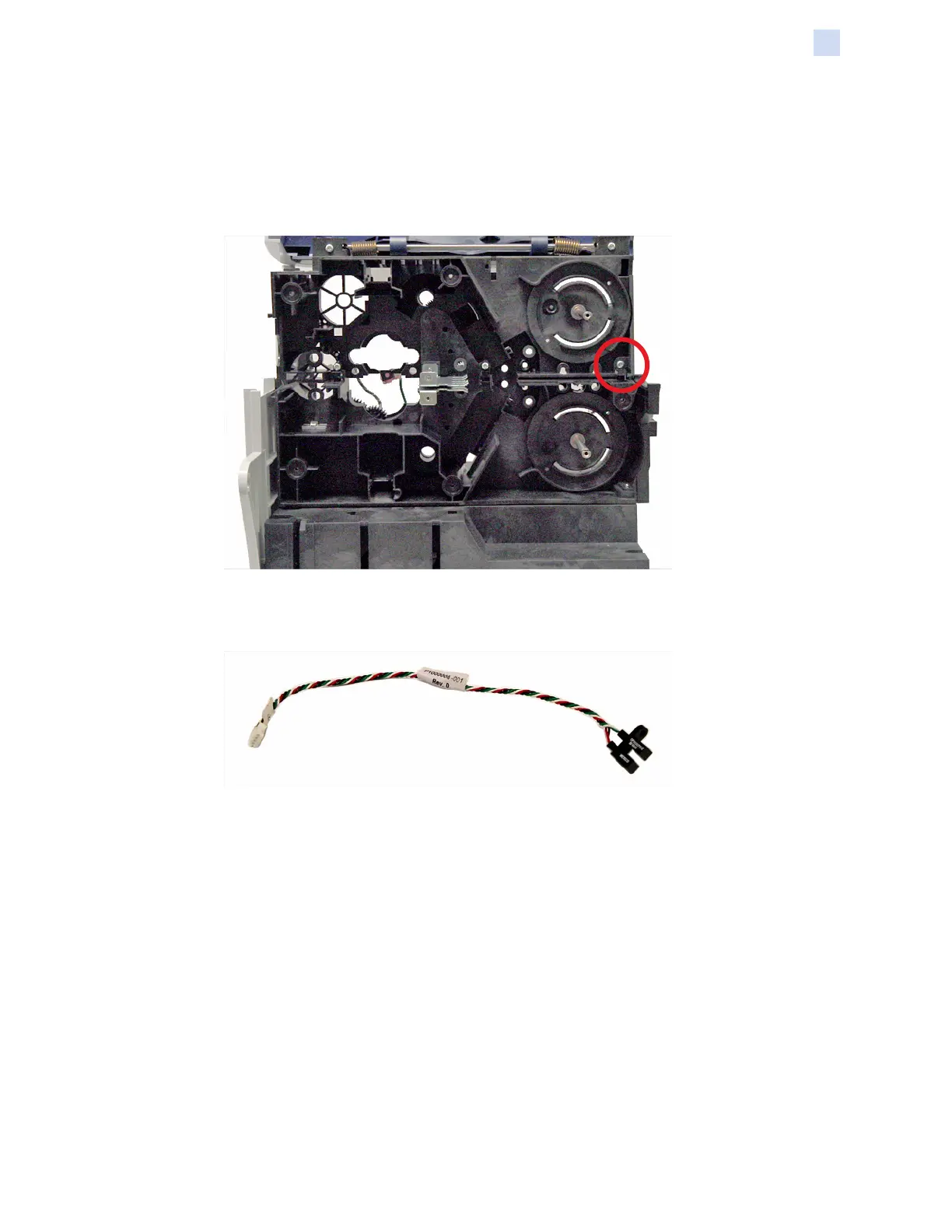

Step 1. Locate the card entry sensor cable assembly (circled below).
Step 2. With a TORX T10 driver, remove the screw holding the sensor in place.
Step 3. Carefully slide the sensor and cable straight out of the laminator.
