P1086708-001 ZXP Series 9 Card Printer Service Manual 413
Replacement Procedures for the Laminator
Procedures: Cruciform Assembly
Cruciform Assembly
For replacement, use Kit Assy Cruciform ZXP 105936G-501. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
Step 1. Locate the cruciform mounted on the frame.

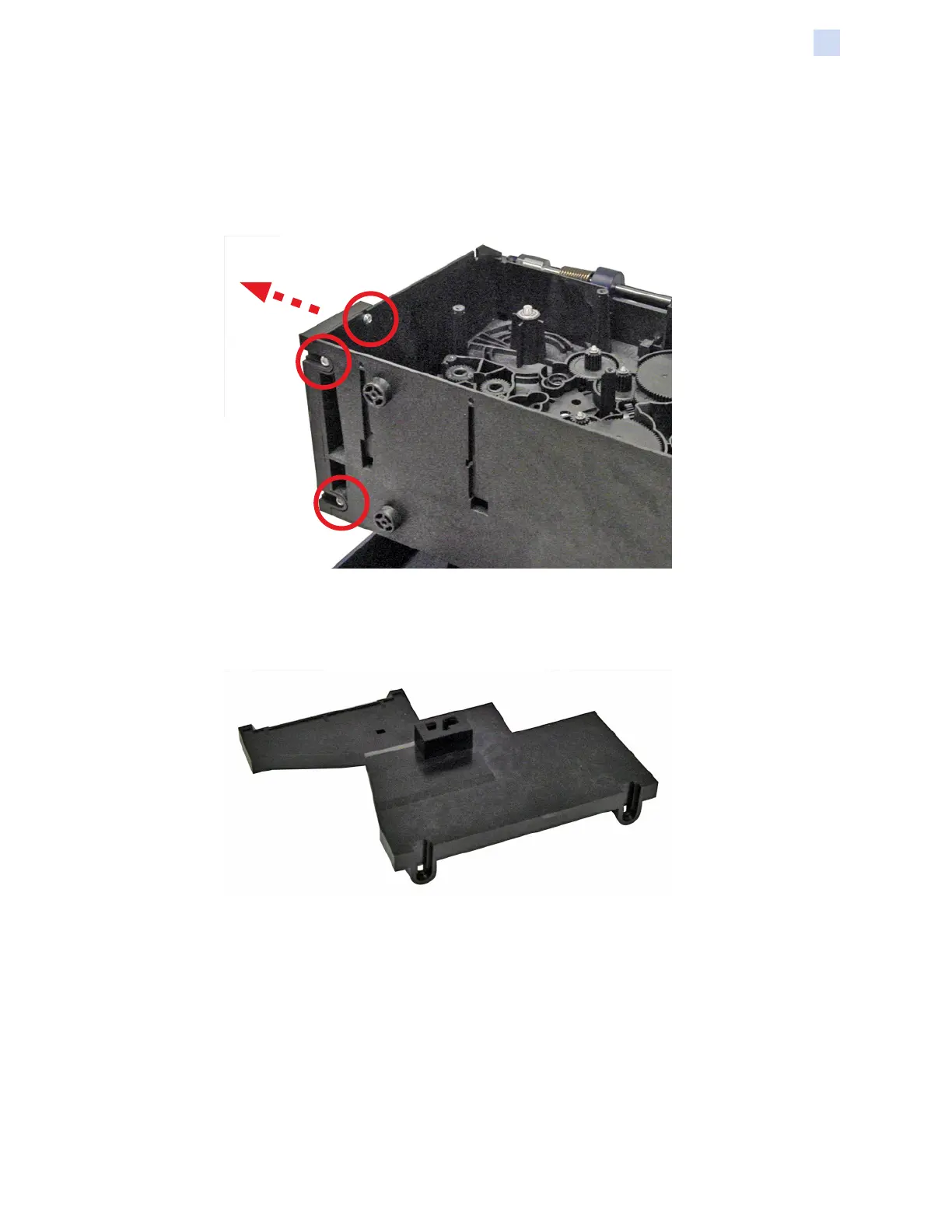

Step 2. With a TORX T10 Driver, remove the three screws (circled below) holding the
cruciform to the frame.
Step 3. Set the cruciform aside.
