Zebra ZXP 9 Series User Manual

280 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Printhead Lift Motor
Printhead Lift Motor
For replacement, use Kit Printhead Lift Motor Assembly 105936G-011. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Note • This procedure uses Spare Kit # 105936G-011: KIT, ASSY, PRINTHEAD LIFT MOTOR.

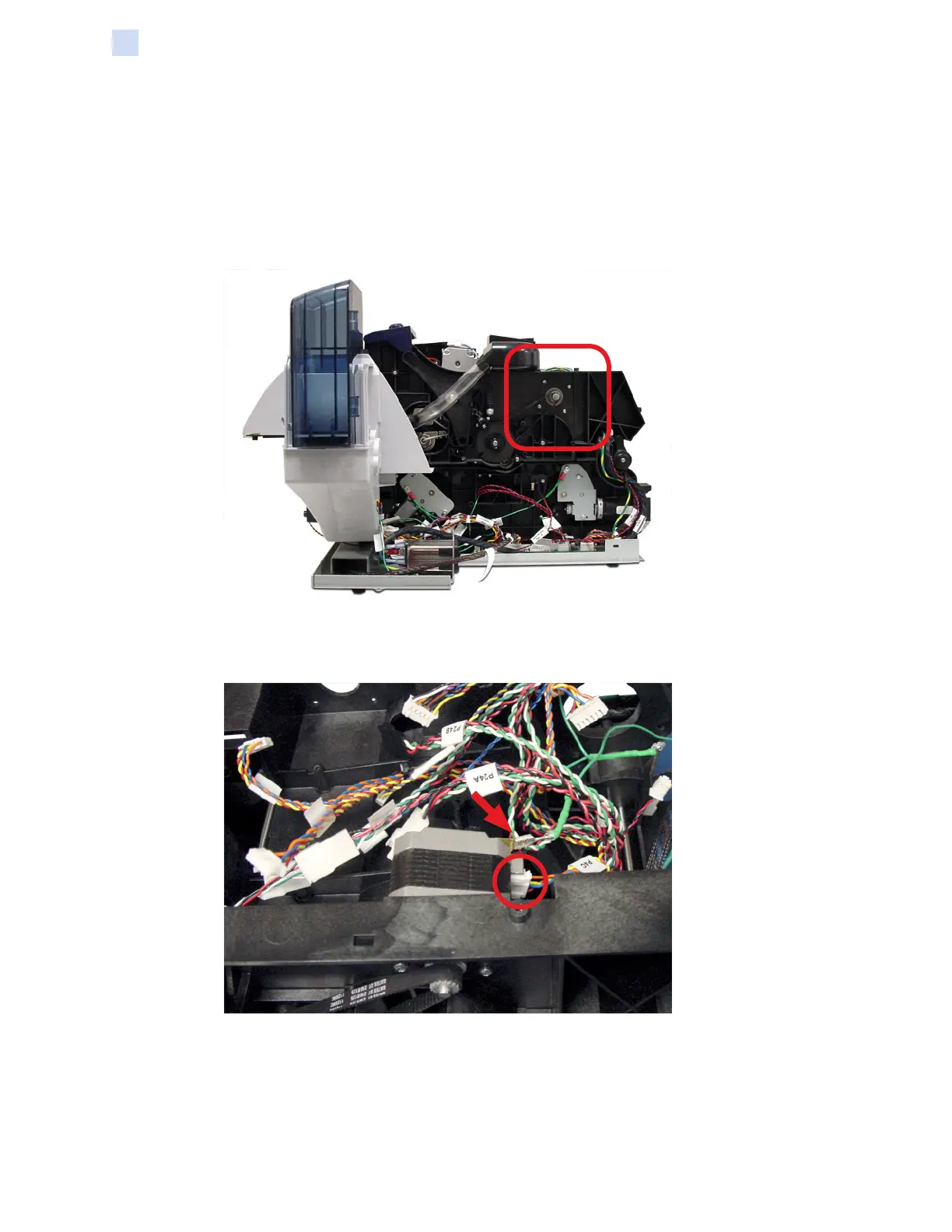

Step 1. Locate the printhead lift motor.
Step 2. Disconnect P4C (circled below).
Step 3. Disconnect the ground wire (arrow below).
