P1086708-001 ZXP Series 9 Card Printer Service Manual 265
Replacement Procedures for the Printer
Procedures: InTM Payout Assembly
InTM Payout Assembly
For replacement, use Kit InTM Payout Assembly 105936G-006. Contact Zebra Customer Service
at +01 877-275-9327 for ordering information.
Removal

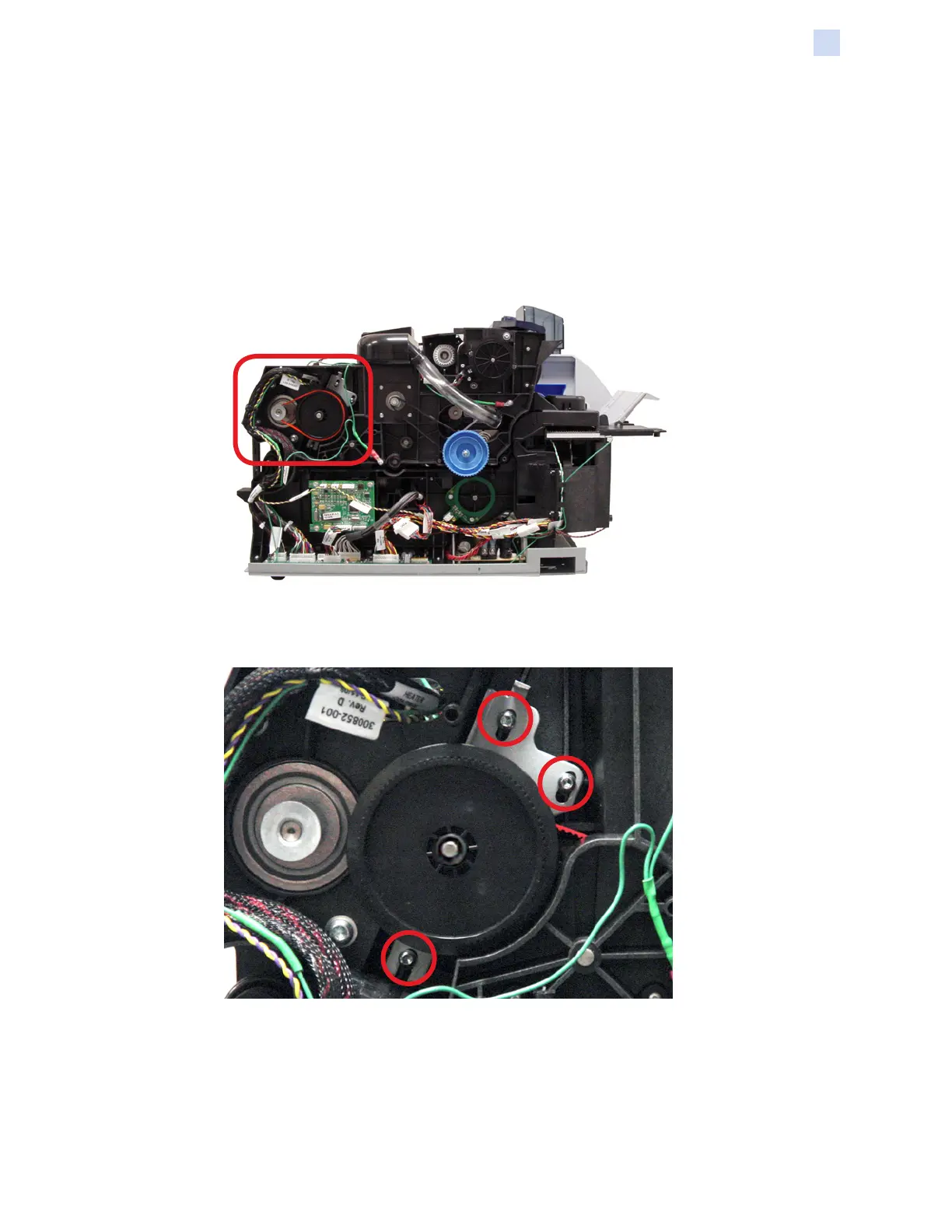

Step 1. Locate the InTM payout assembly.
Step 2. With a TORX T10 driver, loosen the three screws (circled below) holding the
adjustment plate in place and remove the belt.
Step 3. Remove the c-clip and washer holding the pulley in place.
