394 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Platen Overrun Roller (Top & Bottom)
Platen Overrun Roller (Top & Bottom)
For replacement, use Kit Platen Overrun 105936G-525. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
For this procedure you will need to remove (both free and disconnect) the laminator controller PCBA.

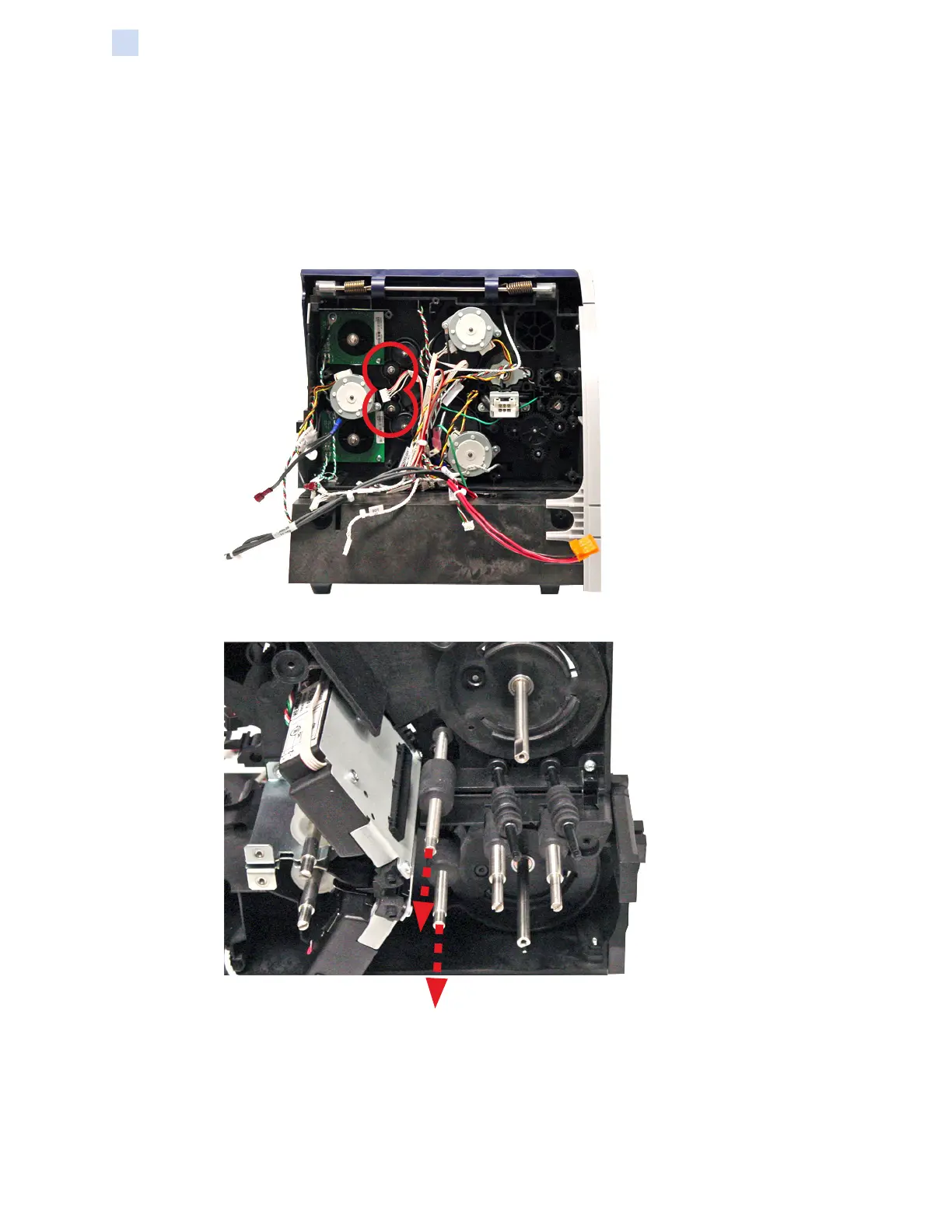

Step 1. Remove the clip(s) holding the platen overrun roller(s) in place (circled below).
Step 2. Remove the platen overrun roller(s). Do not remove the gear.
To Next Page
