354 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Molded Ribbon Spindle
Molded Ribbon Spindle
For replacement, use Kit Spindle Ribbon Molded 105936G-527. Contact Zebra Customer Service
at +01 877-275-9327 for ordering information.

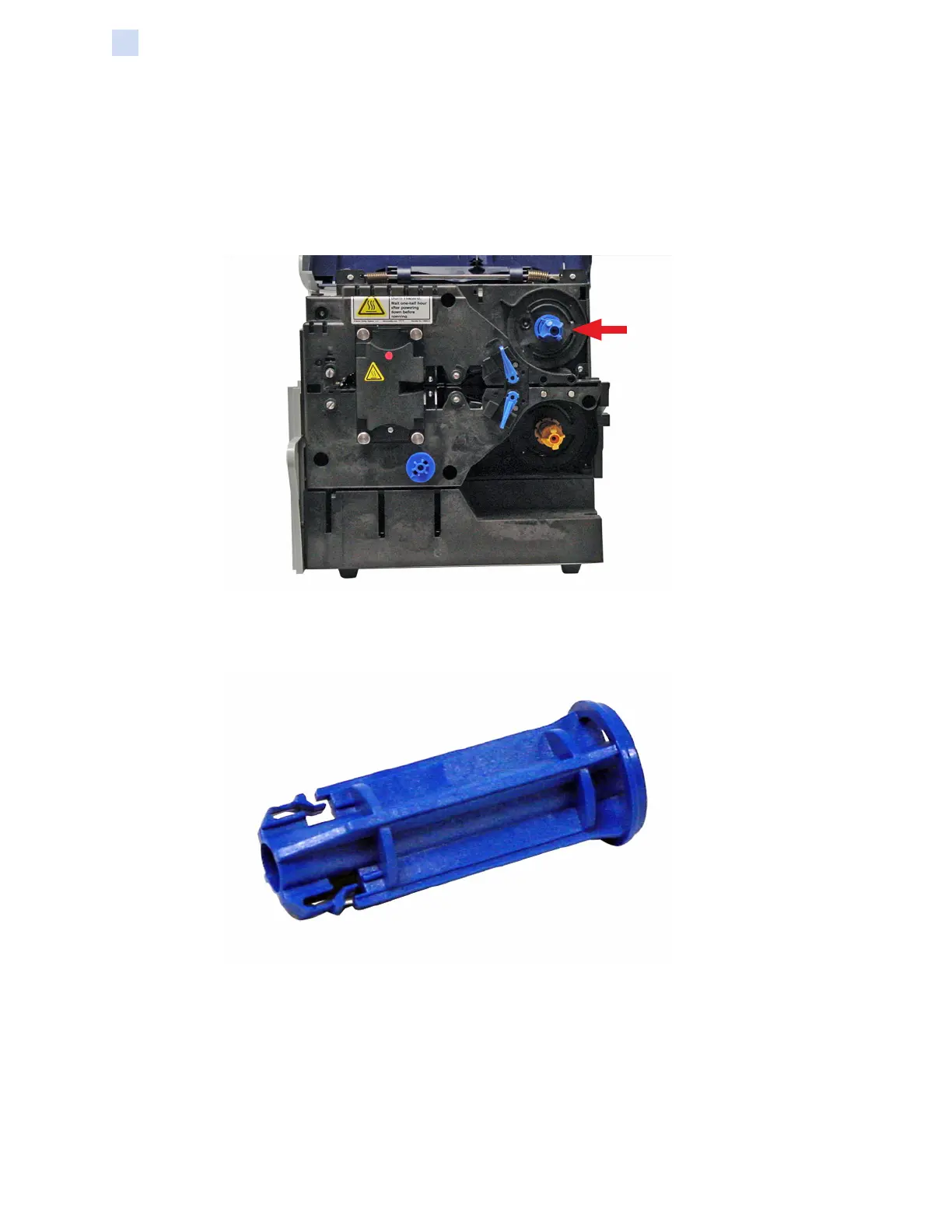

Step 1. With a TORX T10 driver, remove the screw (arrow below) holding the molded ribbon
spindle in place.
Step 2. Slide the molded ribbon spindle off the spindle shaft.
Step 3. Set the molded ribbon spindle aside.
