P1086708-001 ZXP Series 9 Card Printer Service Manual 277
Replacement Procedures for the Printer
Procedures: Transfer Drive Assembly
Transfer Drive Assembly
For replacement, use Kit Transfer Output & Belt 105936G-304. Contact Zebra Customer Service
at +01 877-275-9327 for ordering information.

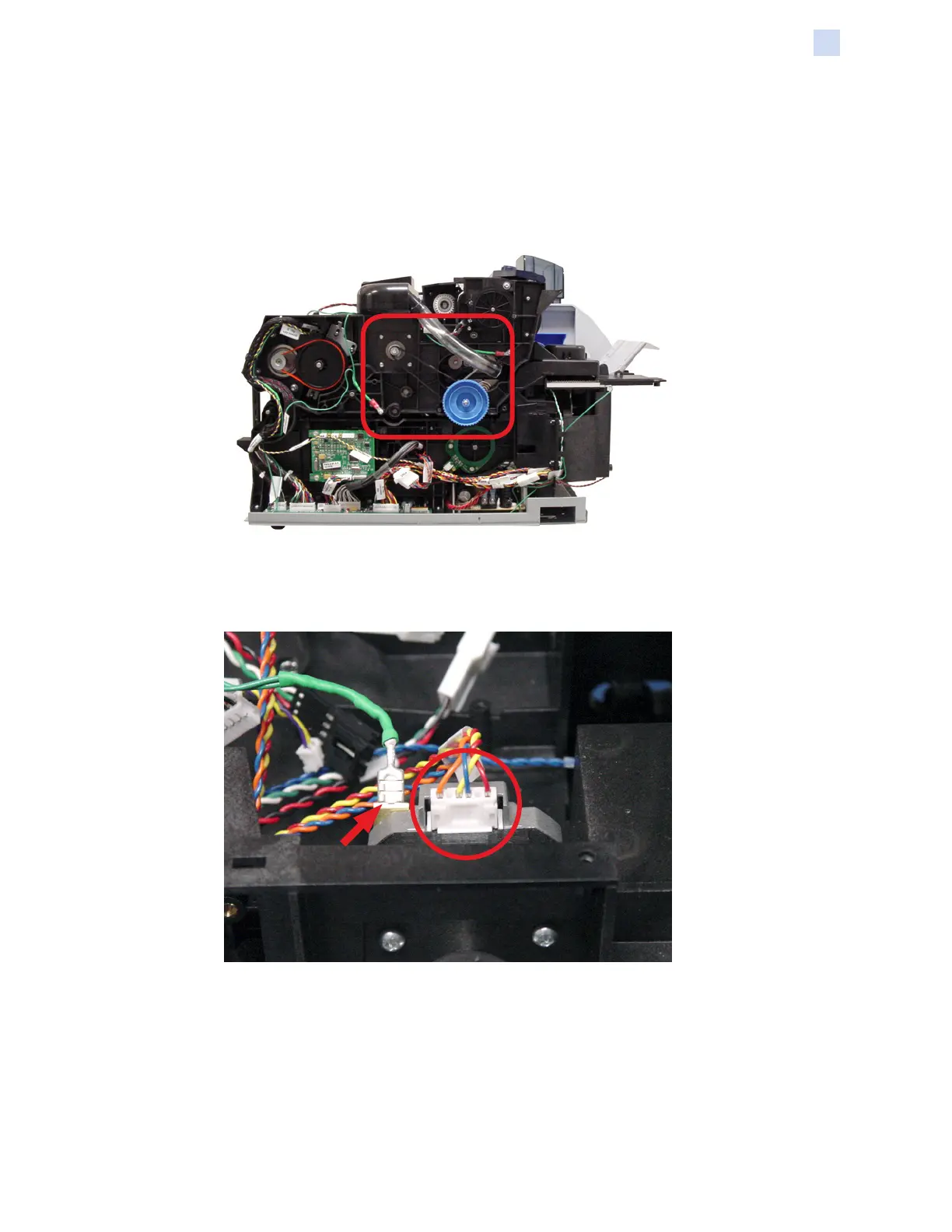

Step 1. Locate the transfer drive assembly.
Step 2. Disconnect P4A (circled below).
Step 3. Disconnect the ground wire (arrow below).
To Next Page
