Zebra ZXP 9 Series User Manual

372 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Bottom Laminator Control Motor

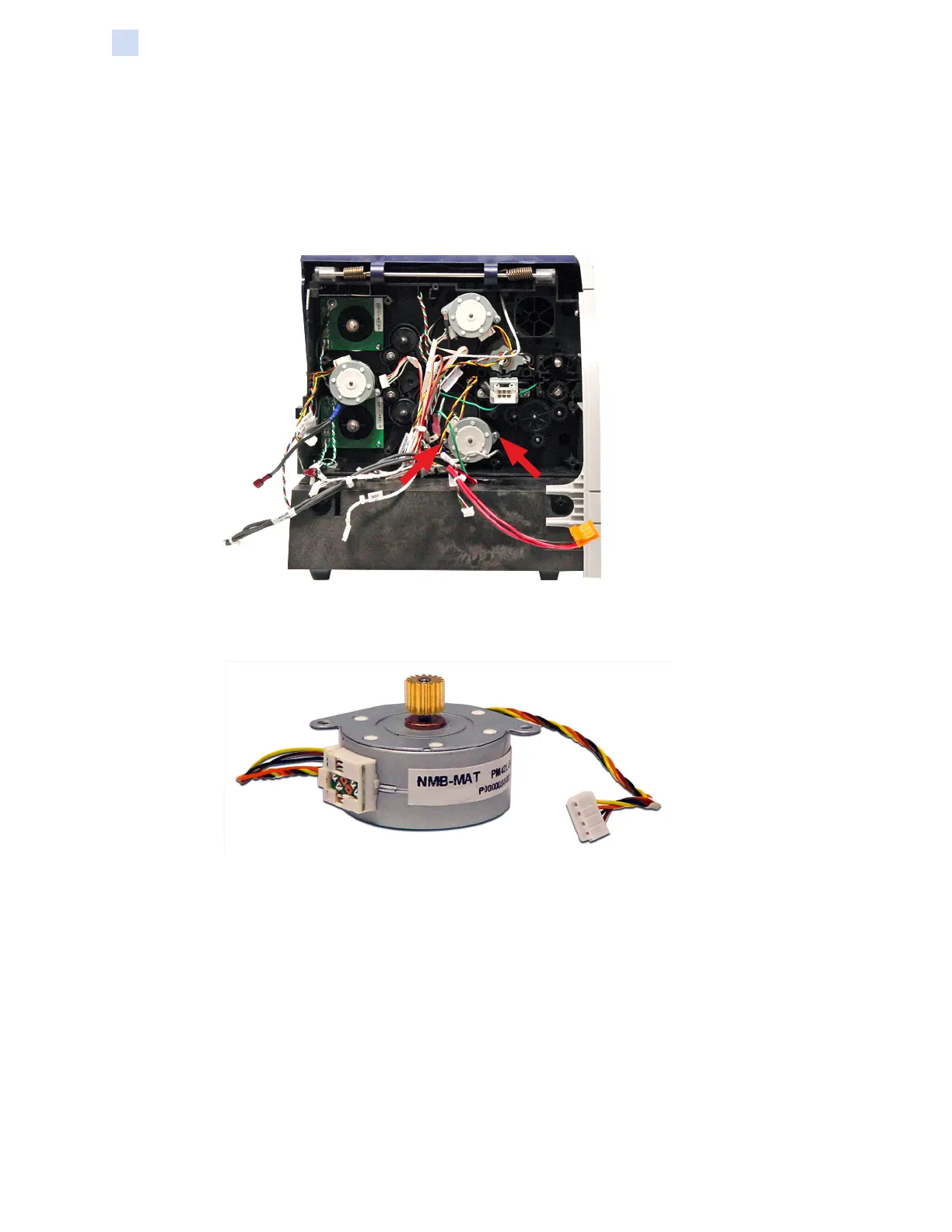

Bottom Laminator Control Motor
For replacement, use Kit Mtr Bi-Stp PM42L-048 LFT 8 105936G-513. Contact Zebra Customer
Service at +01 877-275-9327 for ordering information.
Step 1. With a TORX T10 driver, remove the two screws holding the bottom laminator control
motor in place. Note that the left-hand screw connects a ground wire.
Step 2. If not already disconnected, disconnect the motor plug from J19.
Step 3. Cut the associated cable ties, and remove the bottom laminator control motor.
