P1086708-001 ZXP Series 9 Card Printer Service Manual 341
Replacement Procedures for the Printer
Procedures: Printer Lock
Printer Lock
For replacement, use Kit Printer Replacement Lock 105936G-049. For the printer lock upgrade,
use Kit Upgrade Printer Lock ZXP9 105936G-353 and refer to the instructions enclosed. Contact
Zebra Customer Service at +01 877-275-9327 for ordering information.

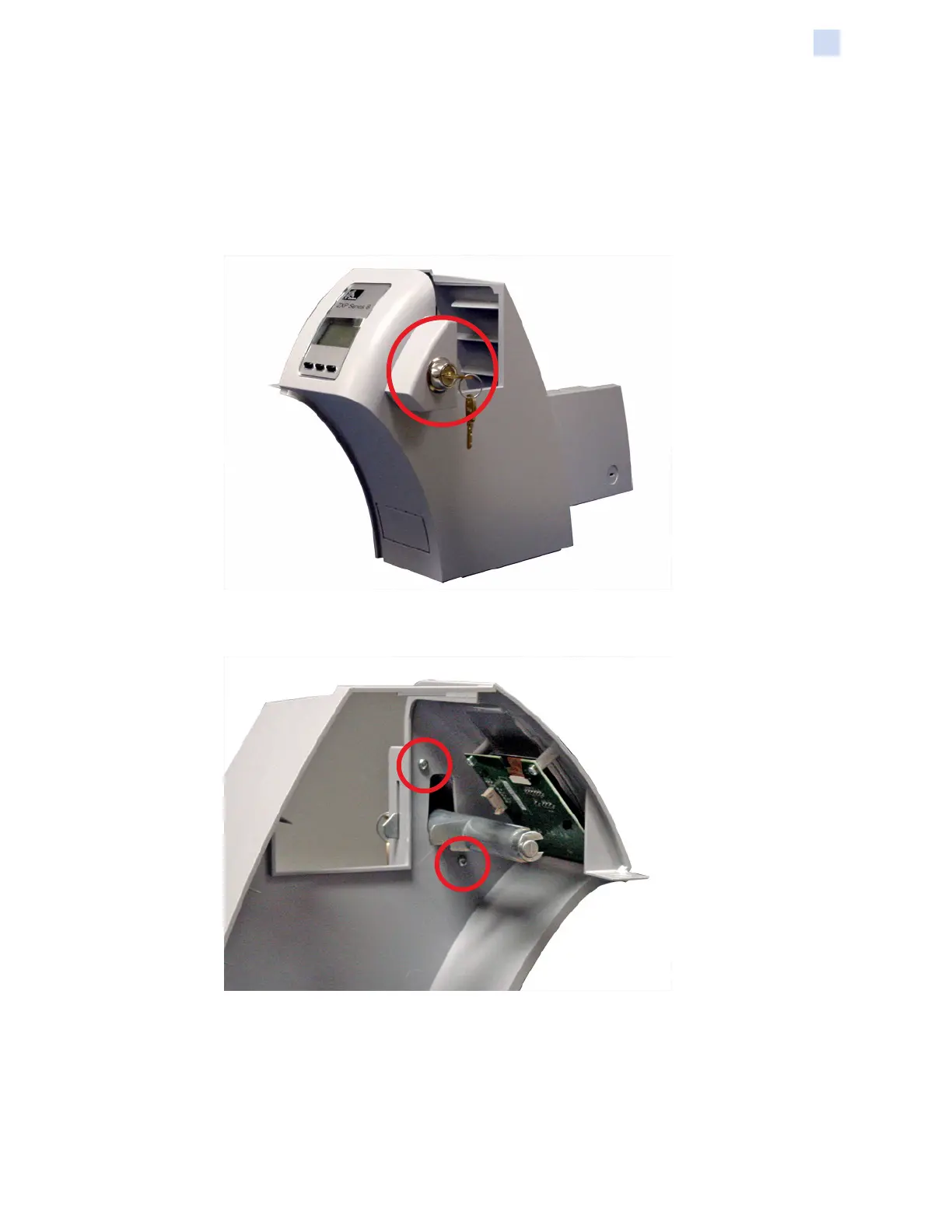

Step 1. Locate the lock.
Step 2. With a TORX T10 driver, remove the two screws (circled below) holding the lock
assembly in place.
Step 3. Remove the lock assembly.
