ZXP Toolbox
Calibrate
Print Position
The sliders are used to position the image at the center of the card.
Film print X offset (dots) – This is the number of dots (300 dpi / ~3 mils/dot.) to shift the image
horizontally to align it on the card. Increasing these values move the image right while decreasing
them moves the image left. This parameter can be used to center the image on the card, or to align it
with an edge. The adjustment range is from -50 to 50.
Film print Y offset (mils) – This is the number of mils to shift the image to align it vertically on
the card. Increasing these values moves the image up while decreasing them moves the image
down. This parameter can be used to center the image on the card, or to align it with an edge. The
adjustment range is from -100 to 100.
Printhead
This area enables entry of the Printhead serial number and entry of the resistance value of a
replacement Printhead. The resistance value is printed on a label attached to the Printhead.

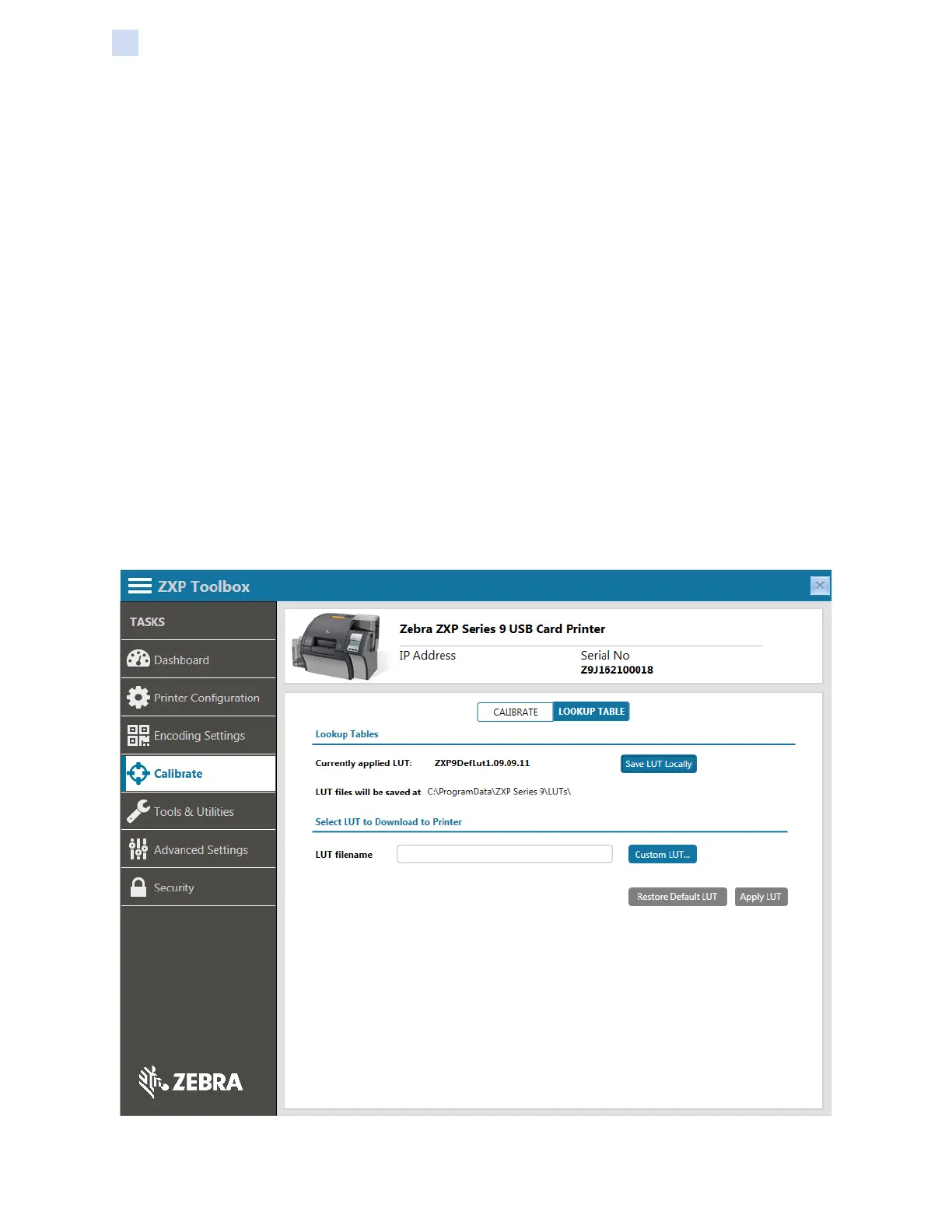

Lookup Table
A Look-Up Table (LUT) is used to transform a range of input colors into a range of output colors. Use
this toolbox option to save and install LUTs, either Default or Custom.
To Next Page
