P1086708-001 ZXP Series 9 Card Printer Service Manual 323
Replacement Procedures for the Printer
Procedures: Idler Cover
Idler Cover
For replacement, use Kit Idler Cover 105936G-014. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.

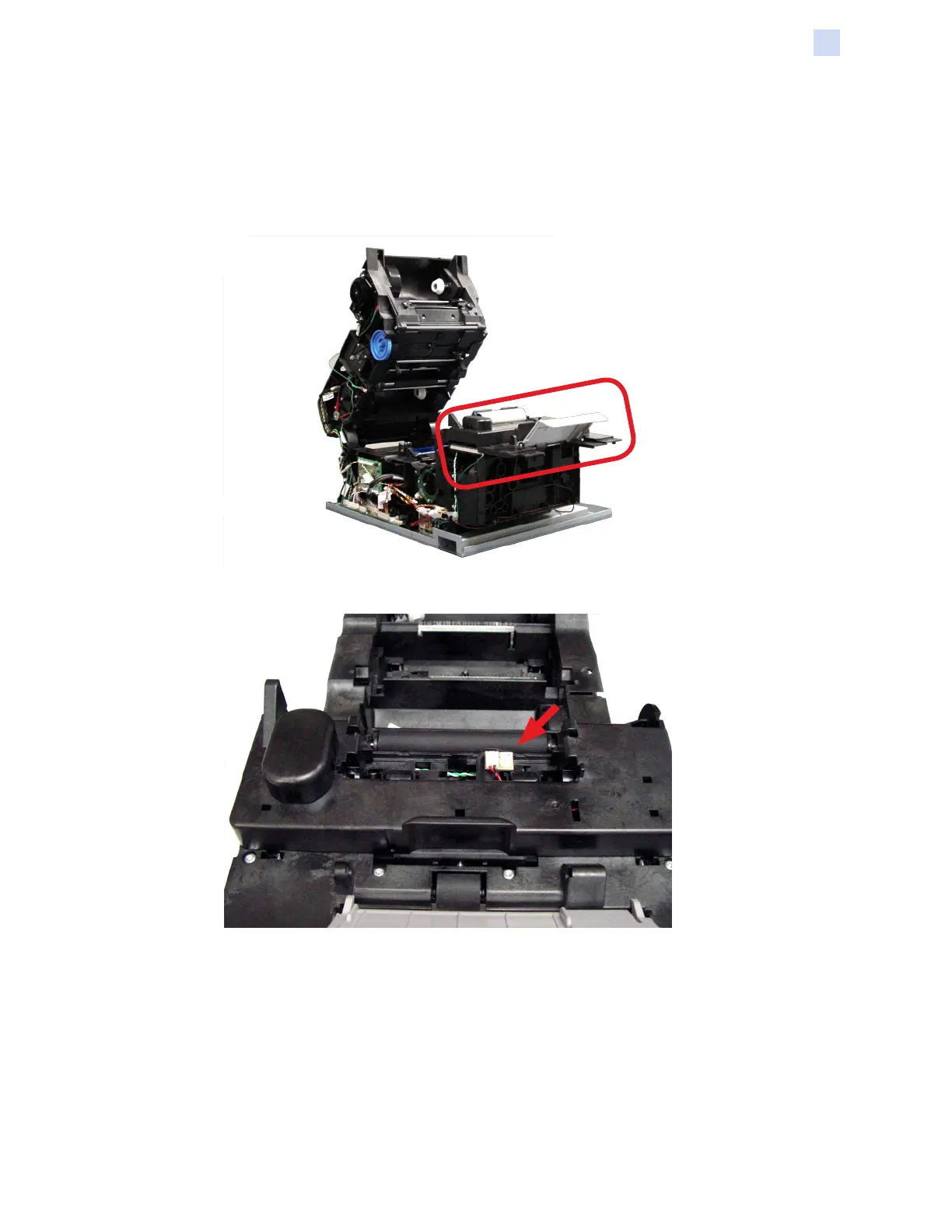

Step 1. Locate the idler cover (circled below).
Step 2. Disconnect the plug to the card detector emitter (arrow below).
To Next Page
