392 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Flexible Ribbed Rollers (Left & Right)
Flexible Ribbed Rollers (Left & Right)
For replacement, use Kit Roller Ribbed Flexible 105936G-521. Contact Zebra Customer Service at
+01 877-275-9327 for ordering information.
For this procedure you will need to free (i.e., remove the four mounting screws), but not disconnect,
the laminator controller PCBA.

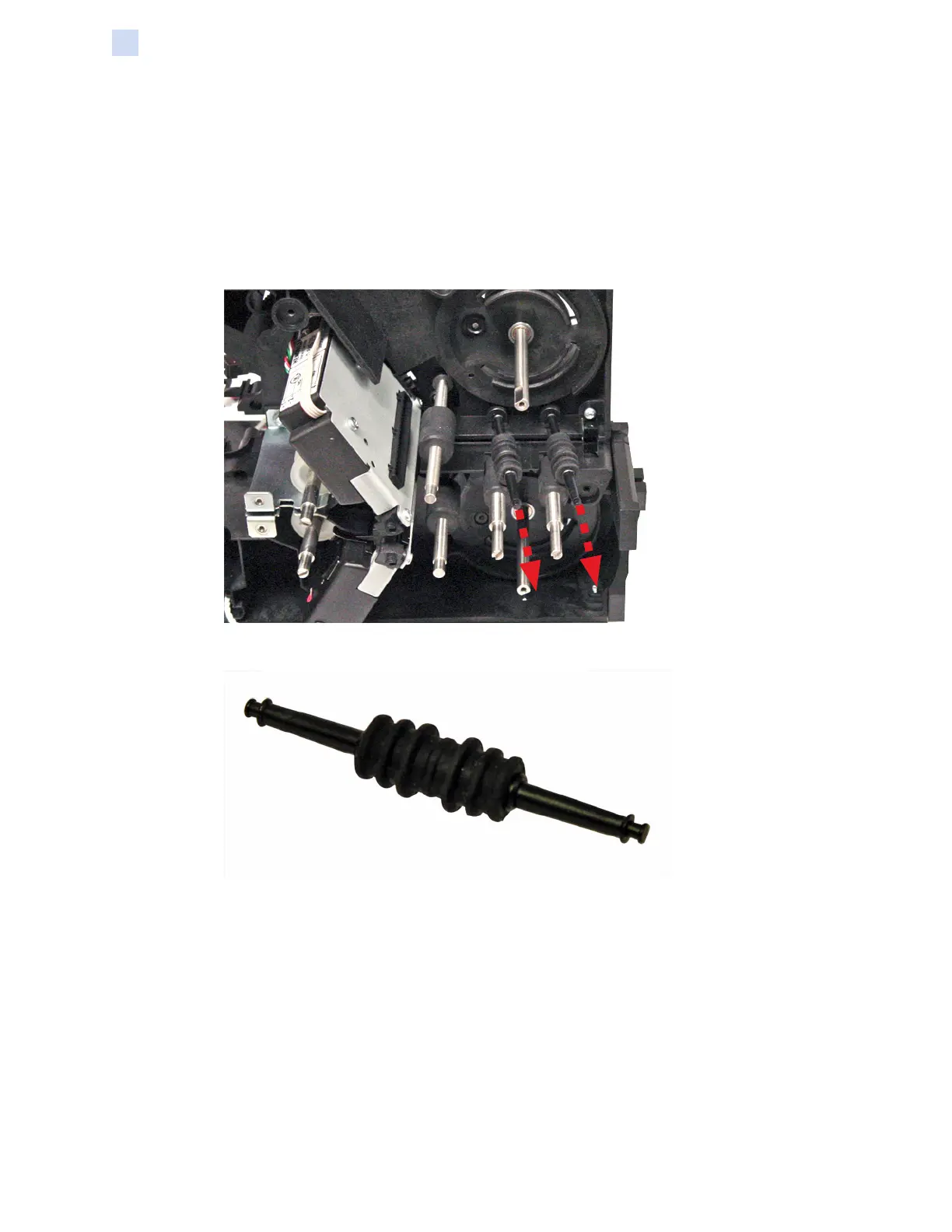

Step 1. Carefully remove the exible rib roller(s); see arrows below.
Step 2. Set the exible rib roller(s) aside.
