Rockwell Automation Publication 2094-UM002G-EN-P - August 2016 175

Configure and Start the Kinetix 6500 Drive System Chapter 7

Configure the Logix Module

Follow these steps to configure the Logix module.

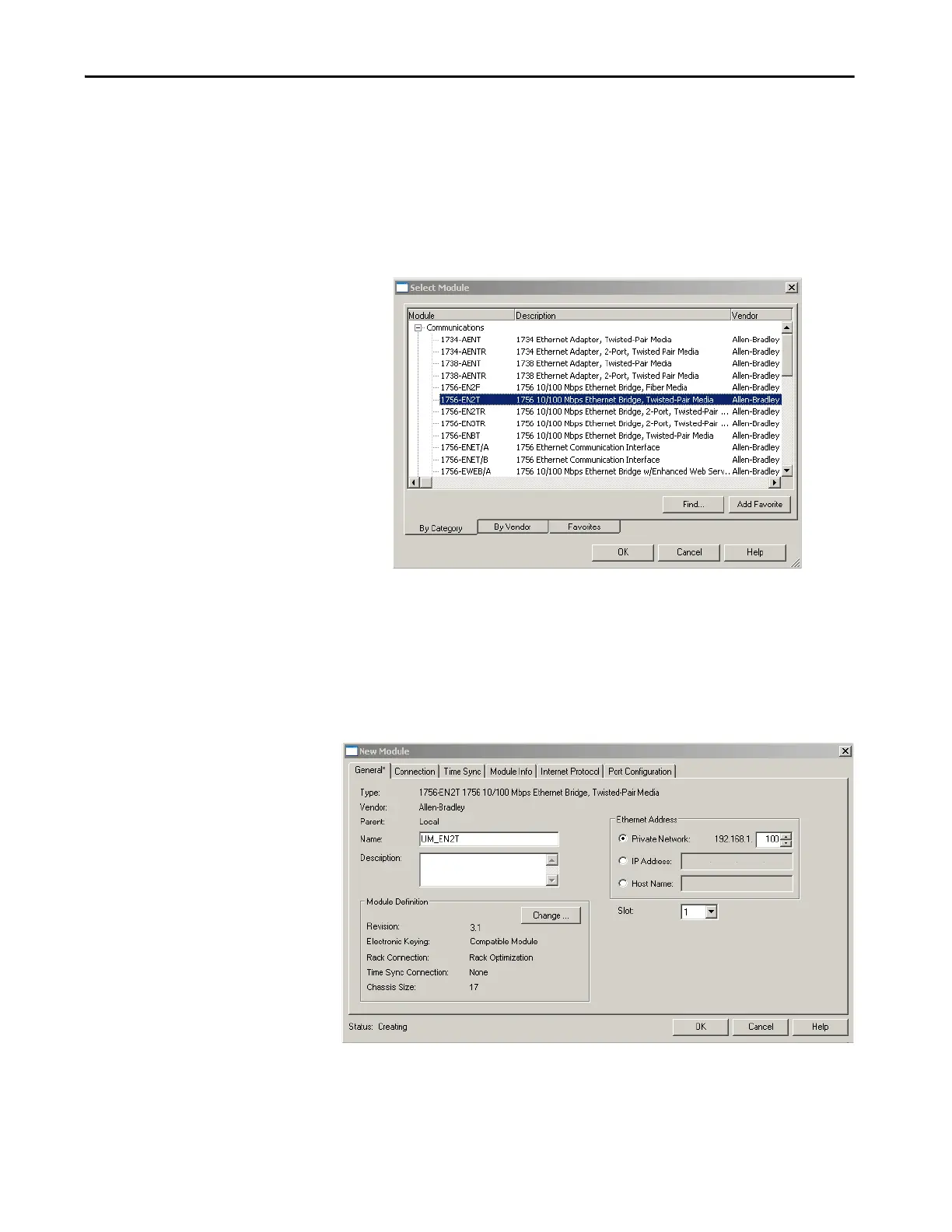

1. Right-click I/O Configuration in the Controller Organizer and choose

New Module.

The Select Module dialog box opens.

2. Expand the Communications category and select 1756-EN2F, 1756-

EN2T, 1756-EN2TR, or 1756-EN3TR as appropriate for your actual

hardware configuration.

In this example, the 1756-EN2T module is selected.

3. Click OK.

The New Module dialog box opens.
