Safety Category
This appendix provides an overview of the safety configuration web pages. For
information on how to configure the safety functions, refer to the Kinetix 6200
and Kinetix 6500 Safe Speed Monitoring Multi-axis Servo Drives Safety
Reference Manual, publication 2094-RM001
.
Safety Main
The Safety Main tab lets you lock or unlock the safety configuration, save the
configuration to a file, apply a safety configuration, and enter a password. The
default [Safety Lock Status] parameter setting is Unlock.

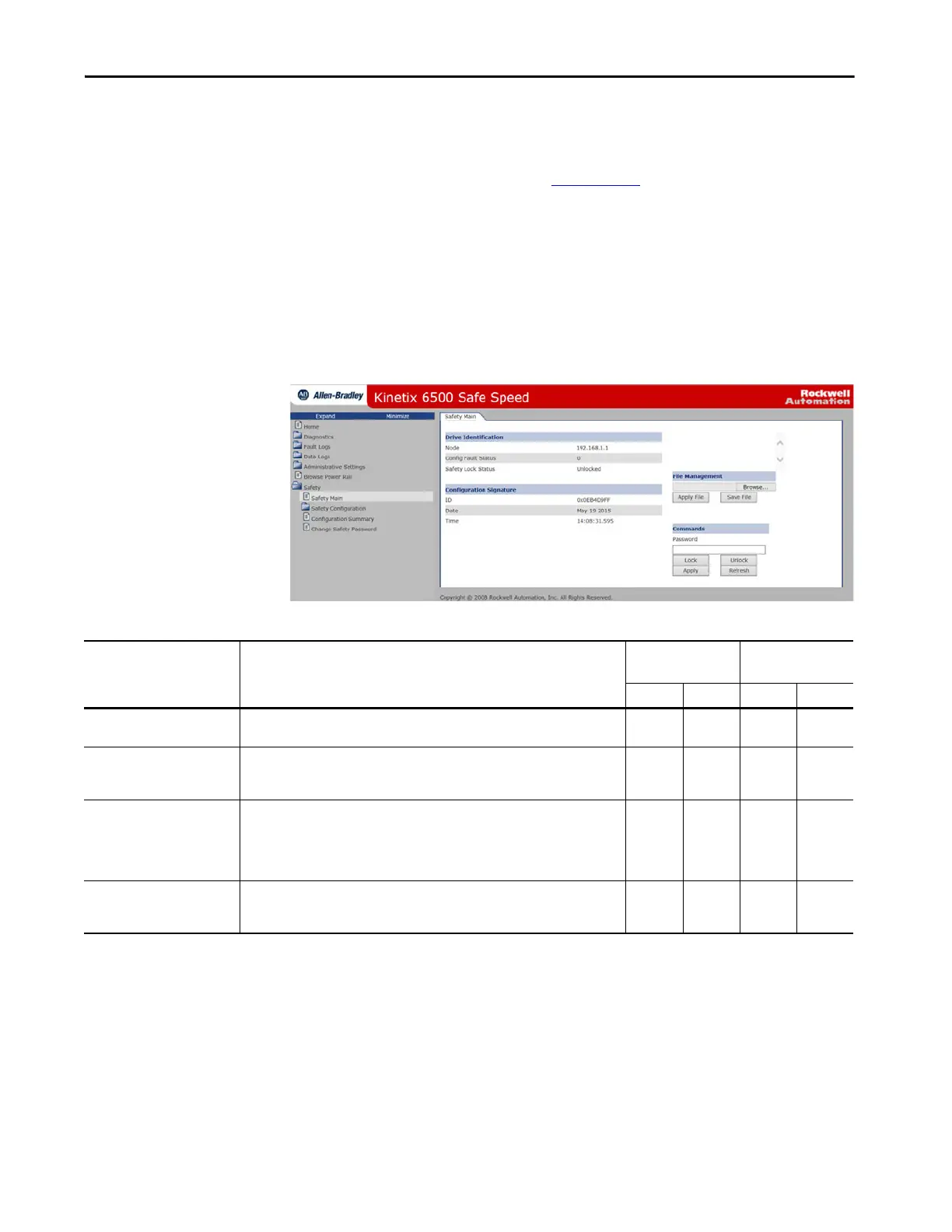

Figure 141 - Safety Main Tab
Table 143 - Safety Main Features
Field Name Description
SERCOS
(2094-SE02F-M00-Sx)
EtherNet/IP
(2094-EN02D-M01-Sx)
-S0 -S1 -S0 -S1
Save File
Click Safe File to save a data file containing the safety configuration information. This
file can be used to configure additional drives with the same safety configuration.
–X–X
Apply File
Click Apply File to directly apply safety configuration settings from a previously saved
file to the drive's safety circuitry. The safety circuitry must be unlocked before a safety
configuration can be applied.
–X–X
Refresh
Click Refresh to update the page after reading the safety configuration signature from
the safety processor. This makes sure that the page does not show a stale value that was
cached when the web page was first opened. Depending on the web browser in use, you
might have to click the Refresh the very first time this page is opened to populate to
values.
–X–X
Lock and Unlock
Click Lock or Unlock to change the lock status of the safety circuitry, prompting for the
Lock/Unlock password, if necessary. The safety circuitry must be unlocked before a
safety configuration can be applied.
–X–X
