Rockwell Automation Publication 2094-UM002G-EN-P - August 2016 289
Web Server Interface Appendix E
Home Category
From the Home tab, you can monitor many of the drive characteristics.

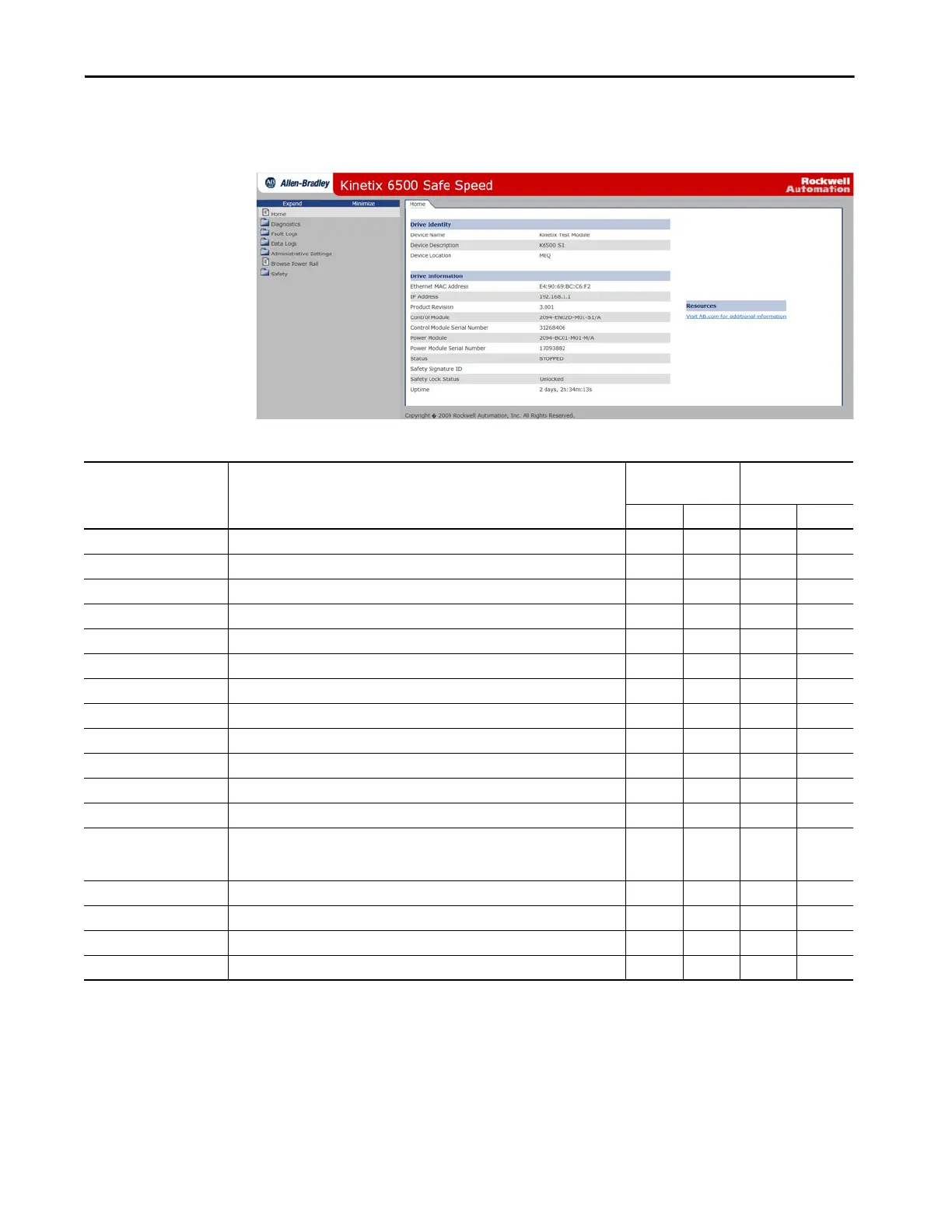

Figure 125 - Home Tab
Table 128 - Home Features
Field Name Description
SERCOS
(2094-SE02F-M00-Sx)
EtherNet/IP
(2094-EN02D-M01-Sx)
-S0 -S1 -S0 -S1
Device Name User-defined information from the device identity page. – – X X
Device Description User-defined information from the device identity page. ––XX
Device Location User-defined information from the device identity page. – – X X
Ethernet MAC AddressMedia Access Control (MAC) hardware address XXXX
Ethernet IP Address IP address XXXX
SERCOS Node Address SERCOS node address X X – –
SERCOS Phase 0, 1, 2, 3, or 4 X X – –
Product Revision Complete firmware revision XXXX
Control Module Control module catalog number and series XXXX
Control Module Serial NumberControl module serial number XXXX
Power Module Power module catalog number and series XXXX
Power Module Serial NumberPower module serial number XXXX
Status
Aborting, firmware update, Safe Torque Off, safe limited speed, self test, connecting,
configuring, syncing, pre-charge, shutdown, stopped, starting, running, testing. stopping,
faulted
XXXX
Safety Signature ID Advanced safety signature identifier – X – X
Safety Lock Status Advanced safety lock status – X – X
Uptime Cumulative time with control power applied XXXX
Resources Link to www.ab.com XXXX
