Web Server Interface Appendix E
CIP Statistics
The CIP. Stat tab displays counters that assist with troubleshooting
EtherNet/IP network problems.

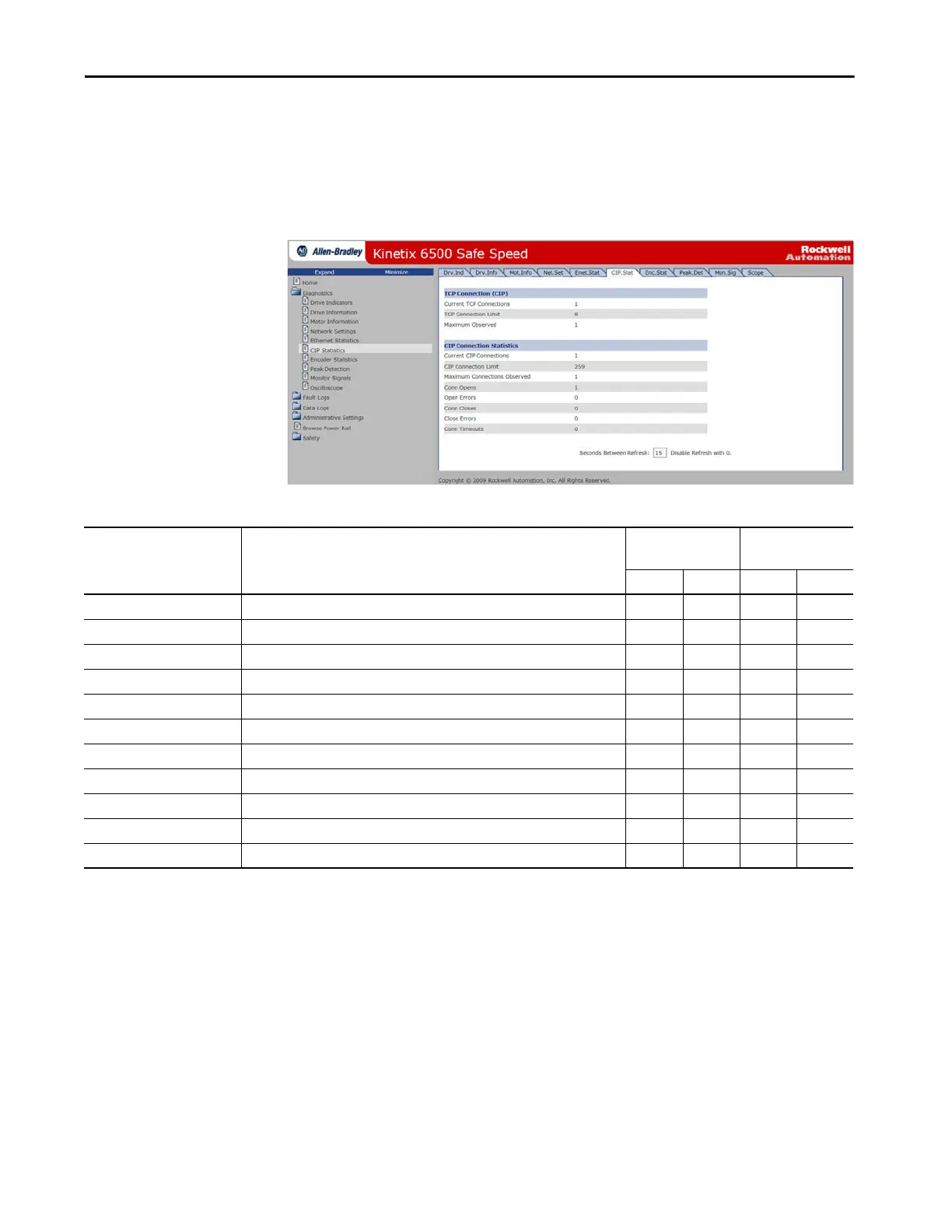

Figure 131 - Diagnostics>CIP. Stat Tab
Table 134 - CIP Statistics Features
Field Name Description
SERCOS
(2094-SE02F-M00-Sx)
EtherNet/IP
(2094-EN02D-M01-Sx)
-S0 -S1 -S0 -S1
Current TCP Connections Current TCP connection – – X X
TCP Connection Limit TCP connection limit – – X X
Maximum Observed Number of maximum observed connections – – X X
Current CIP Connections Current CIP connections – – X X
CIP Connection Limit CIP connection limit – – X X
Max. Connections Observed Number of maximum observed connections – – X X
Connection Opens Total connection opened since powerup – – X X
Open Errors Total errors since powerup – – X X
Connection Closes Total connection closed since powerup – – X X
Close Errors Total connection closed since powerup – – X X
Connection Timeouts Connection timeout since powerup – – X X
