Appendix E Web Server Interface
Fault Logs Category
The Fault Log tab provides access to faults logged by the drive for future
retrieval. Each log in the list is a link and you can view the details. You can
configure individual channels in the fault log via the Configure Fault Log page.
All logs can be exported separately into spreadsheets.

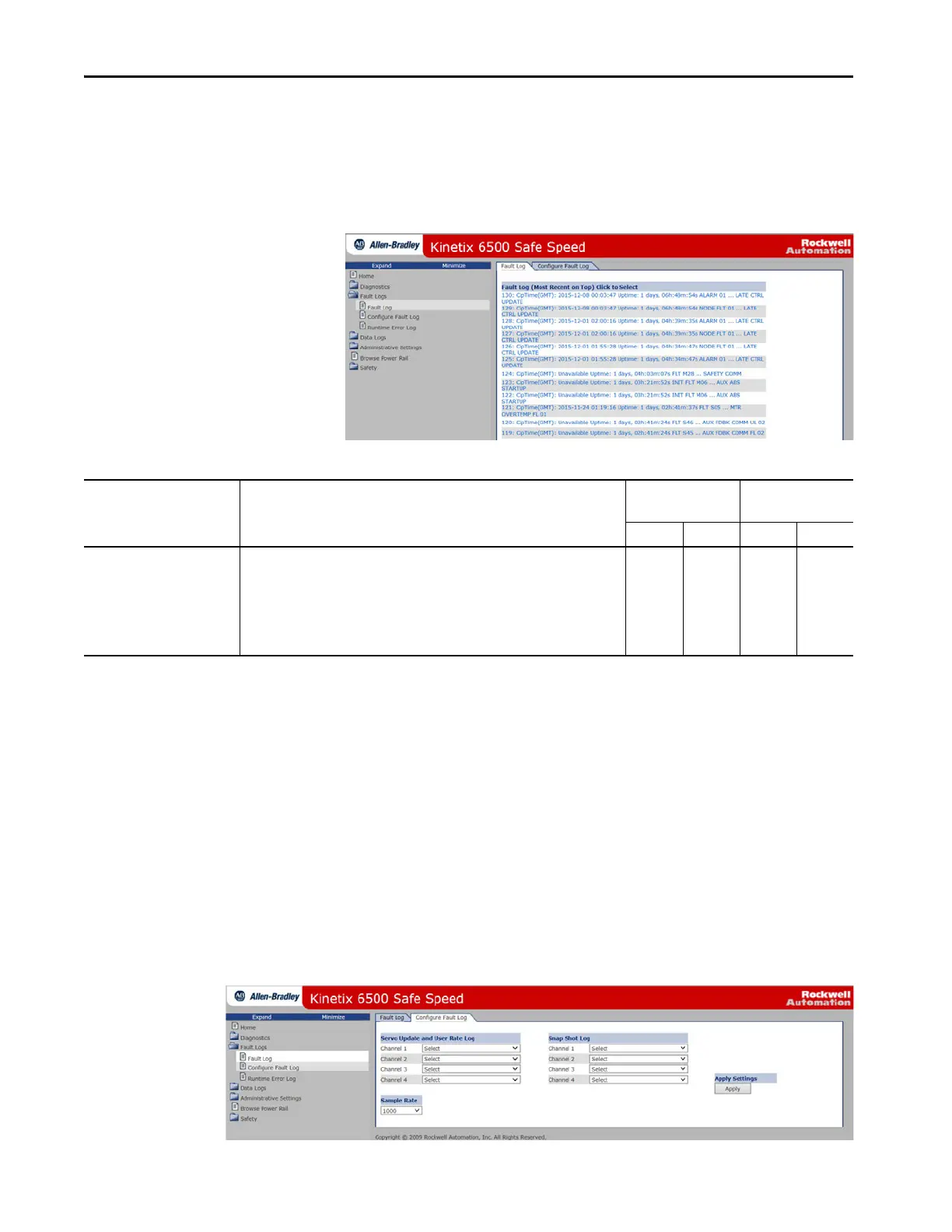

Figure 136 - Fault Logs>Fault Log Tab
Table 139 - Fault Log Features
Configure Fault Log
The Configure Fault Log tab lets you select channels to capture during a fault
that are listed in the fault log. You can select channels for:
• Servo Update and User Rate Log
•Snap Shot Log
A maximum of four channels can be selected for each mode. Once you have
selected the channels, click Apply to save the settings to the drive. These
settings are persistent over power cycles.
Figure 137 - Fault Logs>Configure Fault Log Tab
Field Name Description
SERCOS
(2094-SE02F-M00-Sx)
EtherNet/IP
(2094-EN02D-M01-Sx)
-S0 -S1 -S0 -S1
Fault
A 20-sample non-volatile fault log with programmable 8-channel variable tracing. Each
log entry includes the following:
• Fault code and sub-code
• 4 channels of variables collected at the servo update rate
• 4 channels collected at a programmable sample rate
•CIP time stamp
(1)
• Local time stamp
XXXX
(1) CIP time stamps are available on only 2094-EN02D-M01-Sx (EtherNet/IP) drives.
