Web Server Interface Appendix E
Network Settings
From the Net. Set tab, you can monitor the EtherNet/IP network settings.

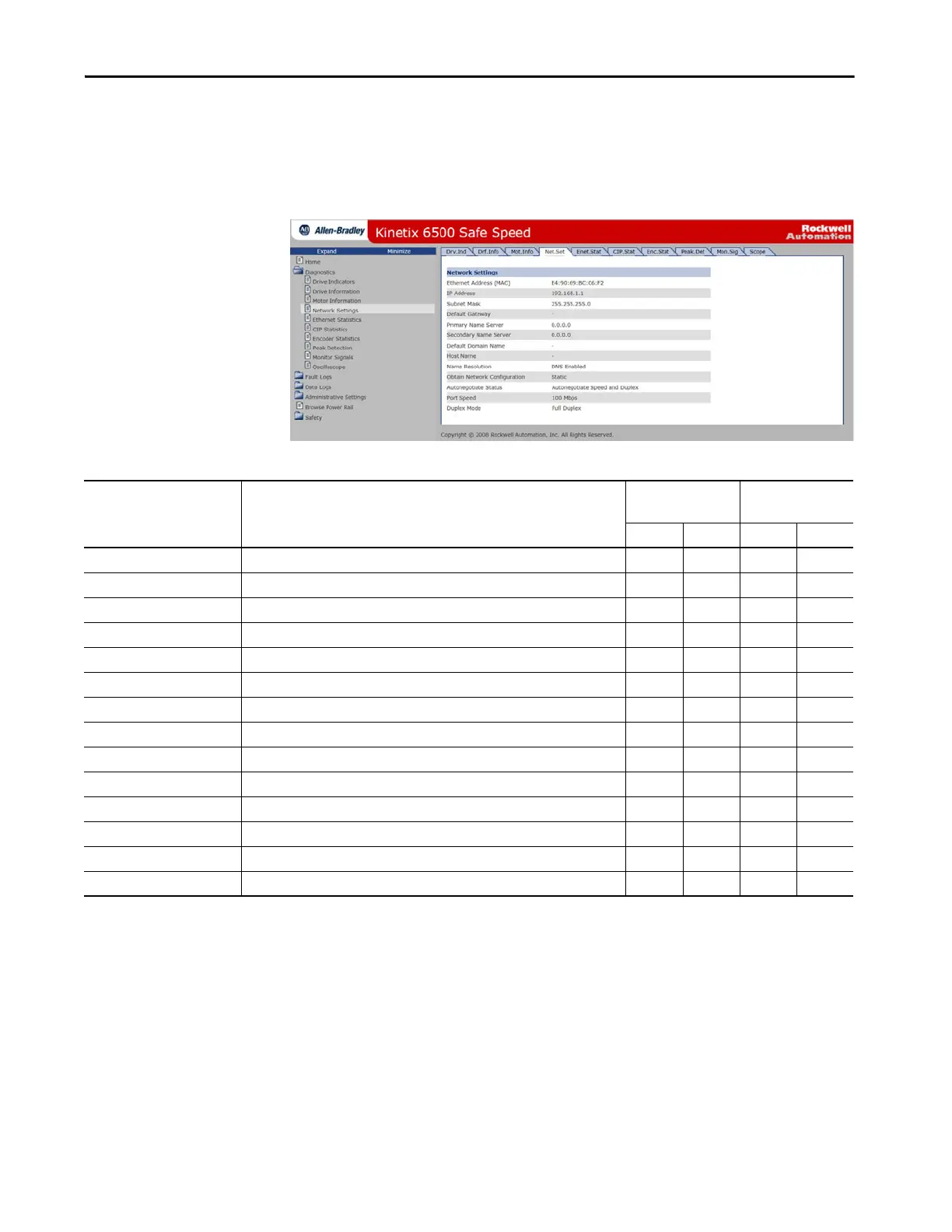

Figure 129 - Diagnostics>Net. Set Tab
Table 132 - Network Settings Features
Field Name Description
SERCOS
(2094-SE02F-M00-Sx)
EtherNet/IP
(2094-EN02D-M01-Sx)
-S0 -S1 -S0 -S1
Ethernet Address (MAC) Media Access Control (MAC) hardware address XXXX
IP Address IP address of the drive XXXX
Subnet Mask Subnet mask XXXX
Default Gateway IP address of the default gateway XXXX
Primary Name Server IP address of the primary name server XXXX
Secondary Name Server IP address of the secondary name server XXXX
Default Domain Name Name representing the IP resource. XXXX
Host Name Name representing the host encapsulated in the domain. XXXX
Name Resolution Mechanism used for name resolution. XXXX
SMTP Server IP address of the SMTP server XXXX
Obtain Network ConfigurationIP settings Static or Automatic. XXXX
Autonegotiate Status Negotiation status bits of the Ethernet link object XXXX
Port Speed 10 Mbps or 100 Mbps XXXX
Duplex Mode Full duplex or half duplex XXXX
