MLD Snooping Querier VLAN Status
Use this page to view the operational state and other information for MLD Snooping queriers for VLANs on the
network.
To access this page, click LAN > Monitoring > MLD Snooping Querier > Querier VLAN Status in the navigation
tree.

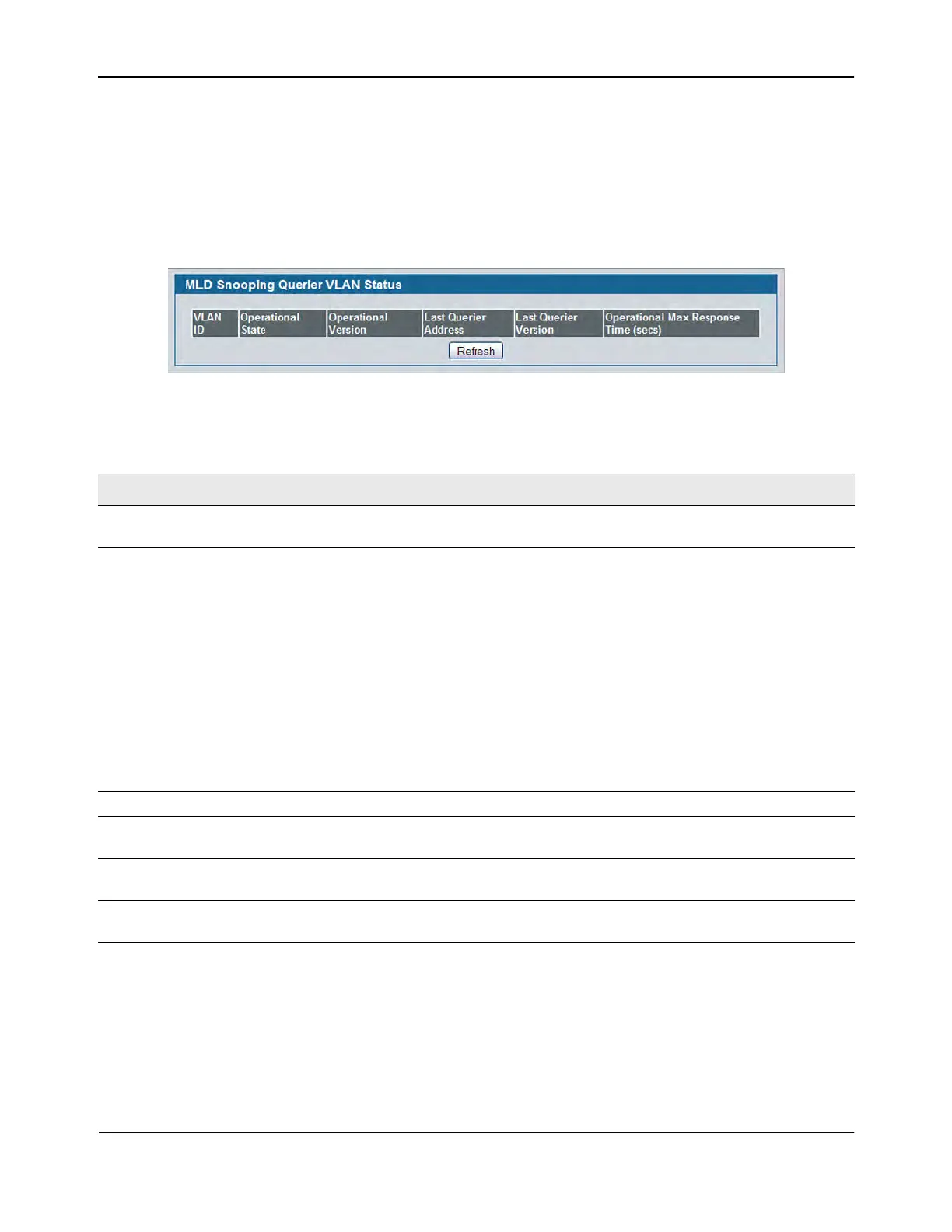

Figure 142: MLD Snooping Querier VLAN Status
• Click Refresh to display the page with the latest information from the switch.
Table 126: MLD Snooping Querier VLAN Status Fields
Field Description
VLAN ID Specifies the VLAN ID on which the MLD Snooping Querier is administratively
enabled and for which VLAN exists in the VLAN database.
Operational State Specifies the operational state of the MLD Snooping Querier on a VLAN:
• Querier: The snooping switch is the querier in the VLAN. The snooping
switch will send out periodic queries with a time interval equal to the
configured querier query interval. If the snooping switch sees a better
querier in the VLAN (i.e., with a numerically lower value), it moves to non-
querier mode.
• Non-Querier: The snooping switch is in non-querier mode in the VLAN. If
the querier expiry interval timer expires, the snooping switch moves into
querier mode.
• Disabled: The snooping querier is not operational on the VLAN. The
snooping querier moves to disabled mode when MLD Snooping is not
operational on the VLAN, when the querier address is not configured, or
the network management address is not configured.
Operational Version Displays the MLD protocol version of the operational querier.
Last Querier Address Displays the IP address of the last querier from which a query was snooped on
the VLAN.
Last Querier Version Displays the MLD protocol version of the last querier from which a query was
snooped on the VLAN.
Operational Max Response
Time
Displays the maximum response time to be used in the queries that are sent
by the snooping querier.
