D-Link DWL-2600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 716
D-Link UWS User Manual

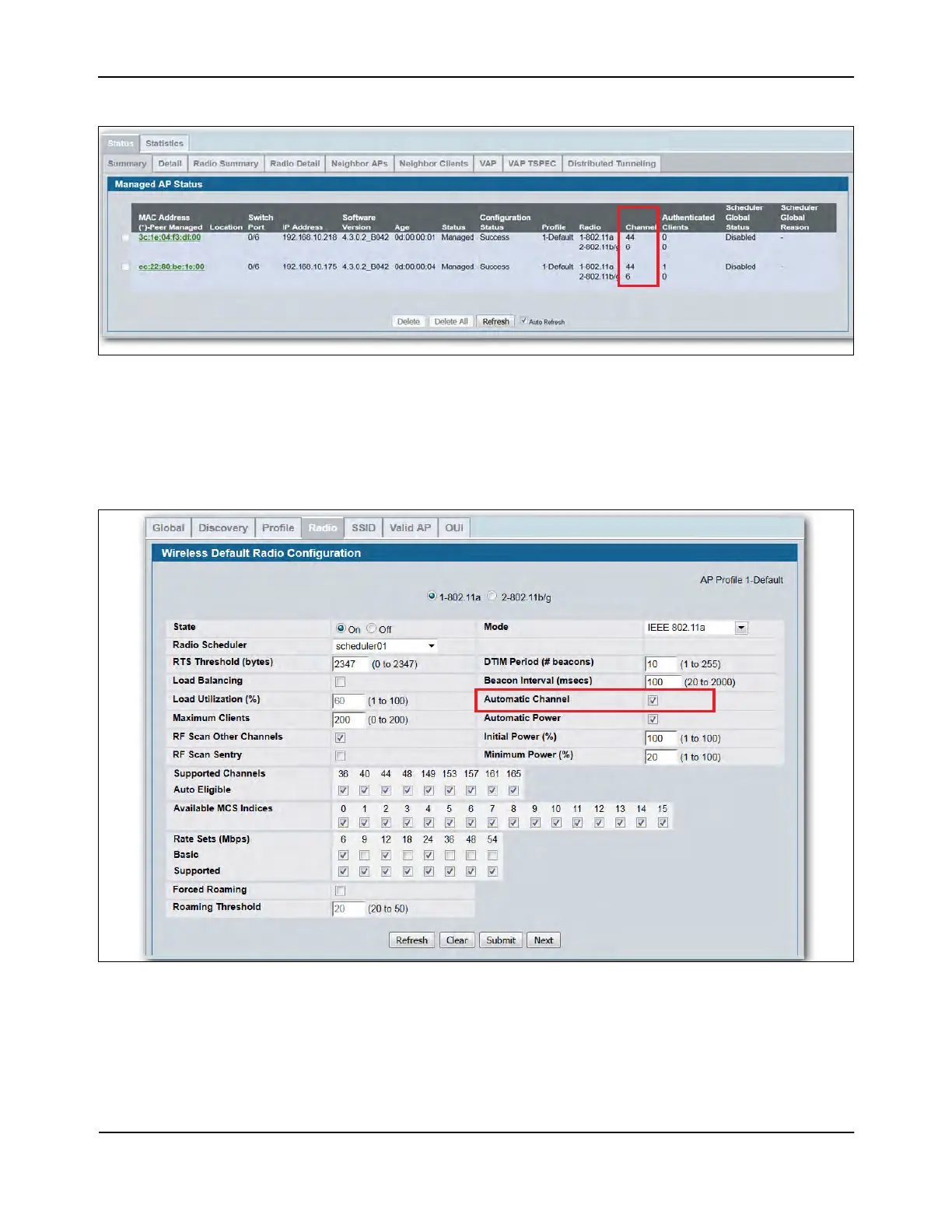

Figure 439: Monitoring Managed AP Channels
A second algorithm, the Auto Channel Adjustment (ACA) can periodically evaluate the operating channel and
can automatically change the channel if the current operating channel is noisy. The cluster controller runs the
ACA algorithm for the whole cluster. Non-cluster controller switches do not run the ACA algorithm. The setting
to enable or disable the ACA algorithm is on the WLAN > Administration > Basic Settings > Radio page.
Figure 440: Automatic Channel Adjustment

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
