Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 660
D-Link UWS User Manual
The following table shows the fields available on the AP Triangulation Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Detailed AP Triangulation Status
Use the AP Triangulation Status page to view detailed triangulation and location information about a detected
or managed AP. To view detailed triangulation information for a specific AP, select its MAC address from the
available menu.

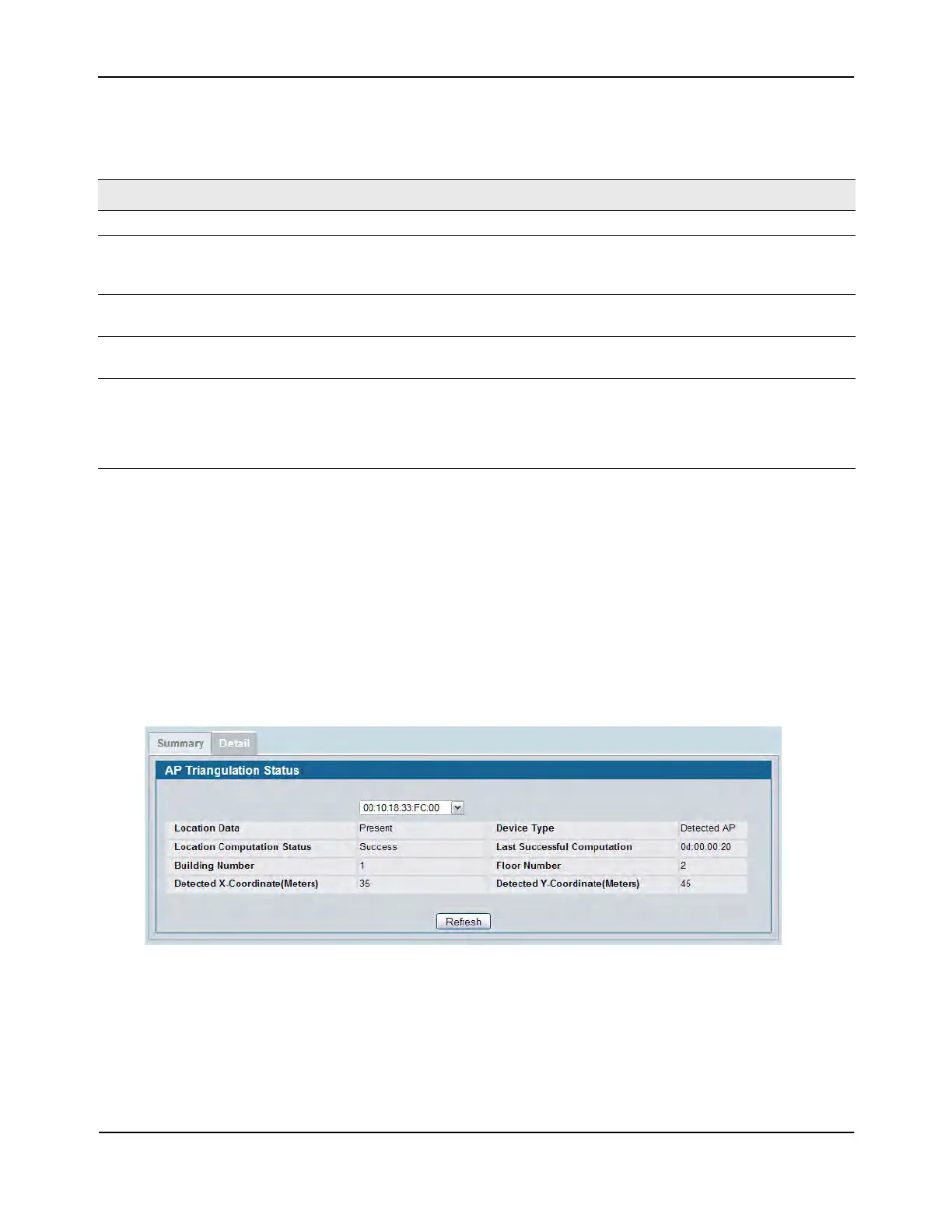

Figure 416: Detailed AP Triangulation Status
Table 381: AP Triangulation Summary
Field Description
Device MAC Address MAC address of the AP
Device Type Indicates whether the device is a Managed AP or a Detected AP. If the
type of device changes, the change might not be reflected until the
device location is next computed.
Building/Floor Number Number that identifies the building and floor where the device is
detected. A value of 0 indicates that no data is available.
Detected XY Coordinate Identifies the X and Y axis offsets of the AP from some arbitrary 0,0
point on the building floor.
Status The status of the last iteration of the location computation algorithm:
• Not Executed
• Success
•Failure

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
