Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 535
D-Link UWS User Manual
WDS Group AP Status Summary
The WDS AP Group Status Summary page displays summary information about the APs in a configured WDS
group.

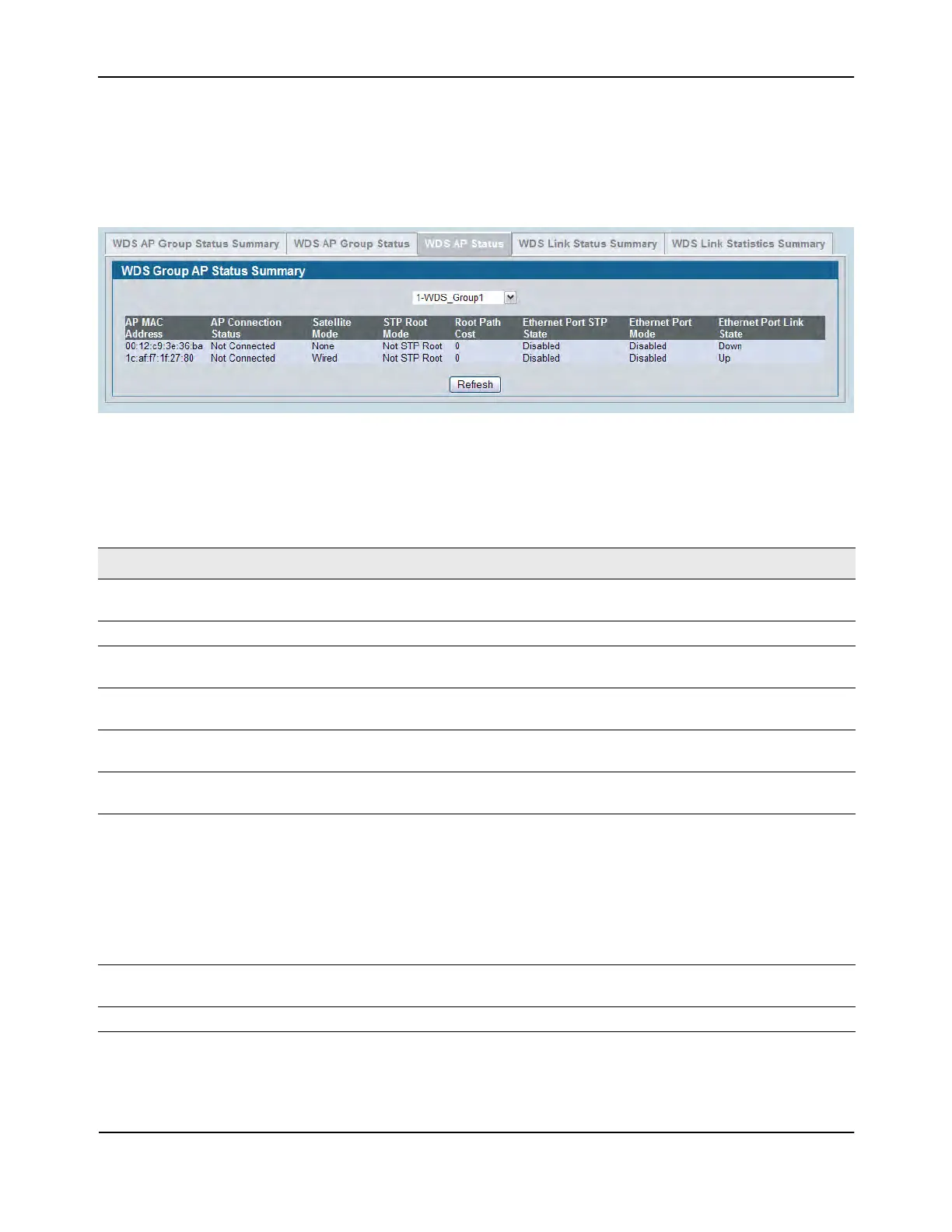

Figure 353: WDS AP Group Status Summary
The following table describes the fields on the WDS AP Group Status Summary page.
Table 321: WDS AP Group Status Summary
Field Description
Group ID Use the drop-down menu above the fields to select the group number that identifies
the configured WDS AP group.
AP MAC Address Identifies the AP in the group by its MAC address
AP Connection Status Indicates whether the AP is currently being managed by one of the switches in the
cluster.
Satellite Mode Indicates whether the AP is a satellite AP connected to the network via a WDS link or
a root AP connected to the network via a wired link.
Root Mode Indicates whether this AP is the root of the spanning tree. If spanning tree is disabled
then the AP is always reported as Not Root.
Root Path Cost Spanning Tree Path Cost to the root. The root AP always reports this value as 0. If
spanning tree is disabled the value is also 0.
Ethernet Port State When spanning tree is enabled on the APs in the WDS group this status parameter
reports the spanning tree status of the Ethernet port, which is one of the following:
• Disabled ( is disabled or Link is down)
• Forwarding
• Learning
• Listening
• Blocking
Ethernet Port Mode On satellite APs the Ethernet port can be manually disabled. On root APs the port is
always enabled.
Ethernet Port Link State When the Ethernet port is enabled, this status reports the link state of the port.
