D-Link DWL-2600AP User Manual

Viewing Inventory Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 66
D-Link UWS User Manual
Viewing Inventory Information
Use the Inventory Information page to display the switch's Vital Product Data, which is stored in non-volatile
memory at the factory.
To display the inventory information, click LAN > Monitoring  Inventory Information page in the navigation
tree.

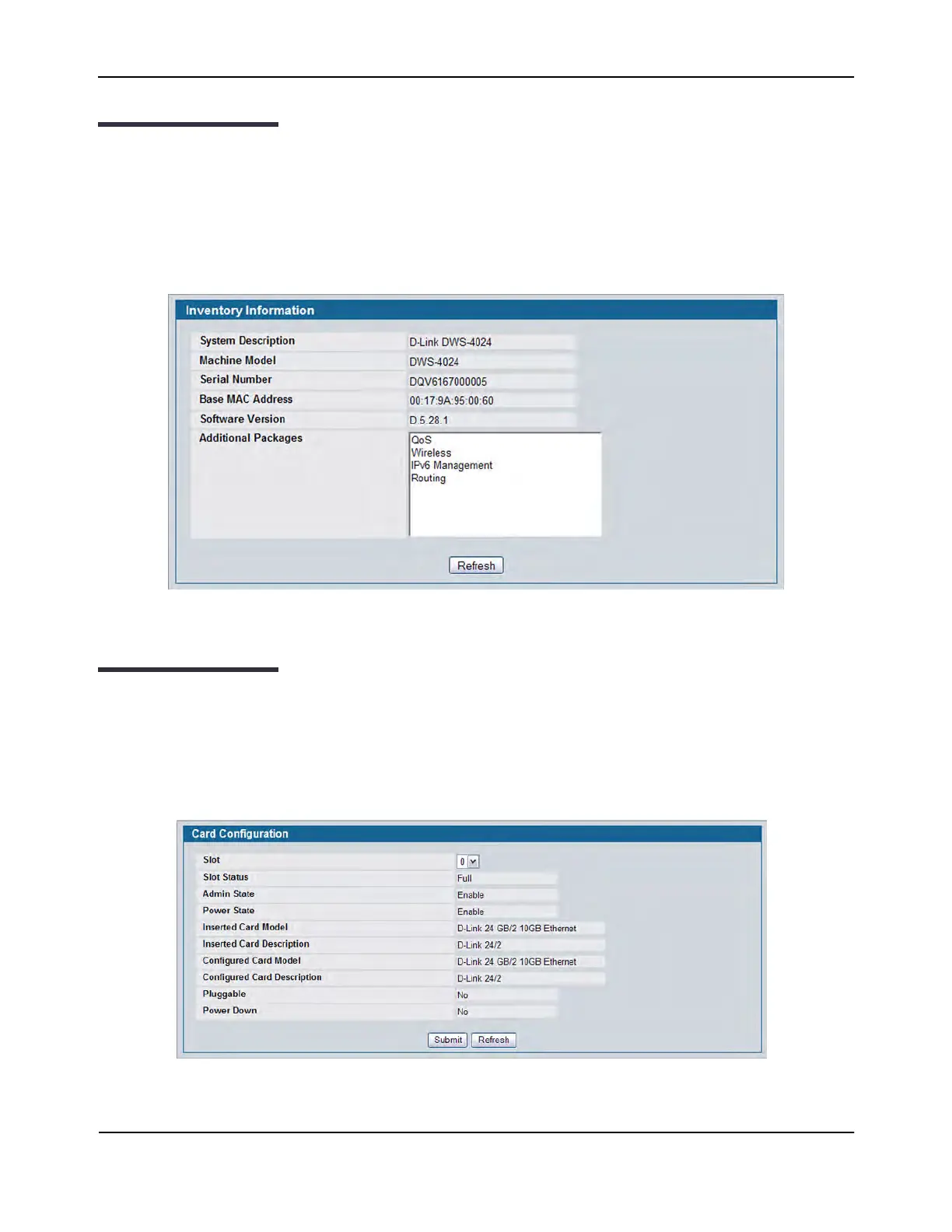

Figure 9: Inventory Information
Card Configuration
The pages in the Slot folder provide information about the cards installed in the slots on the switch. To access
the Card Configuration page, click LAN > Administration > Card Configuration in the navigation menu.
Figure 10 shows the fields that display when the slot contains a card.
Figure 10: Card Configuration

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
