D-Link DWL-2600AP User Manual

MAC Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 370
D-Link UWS User Manual

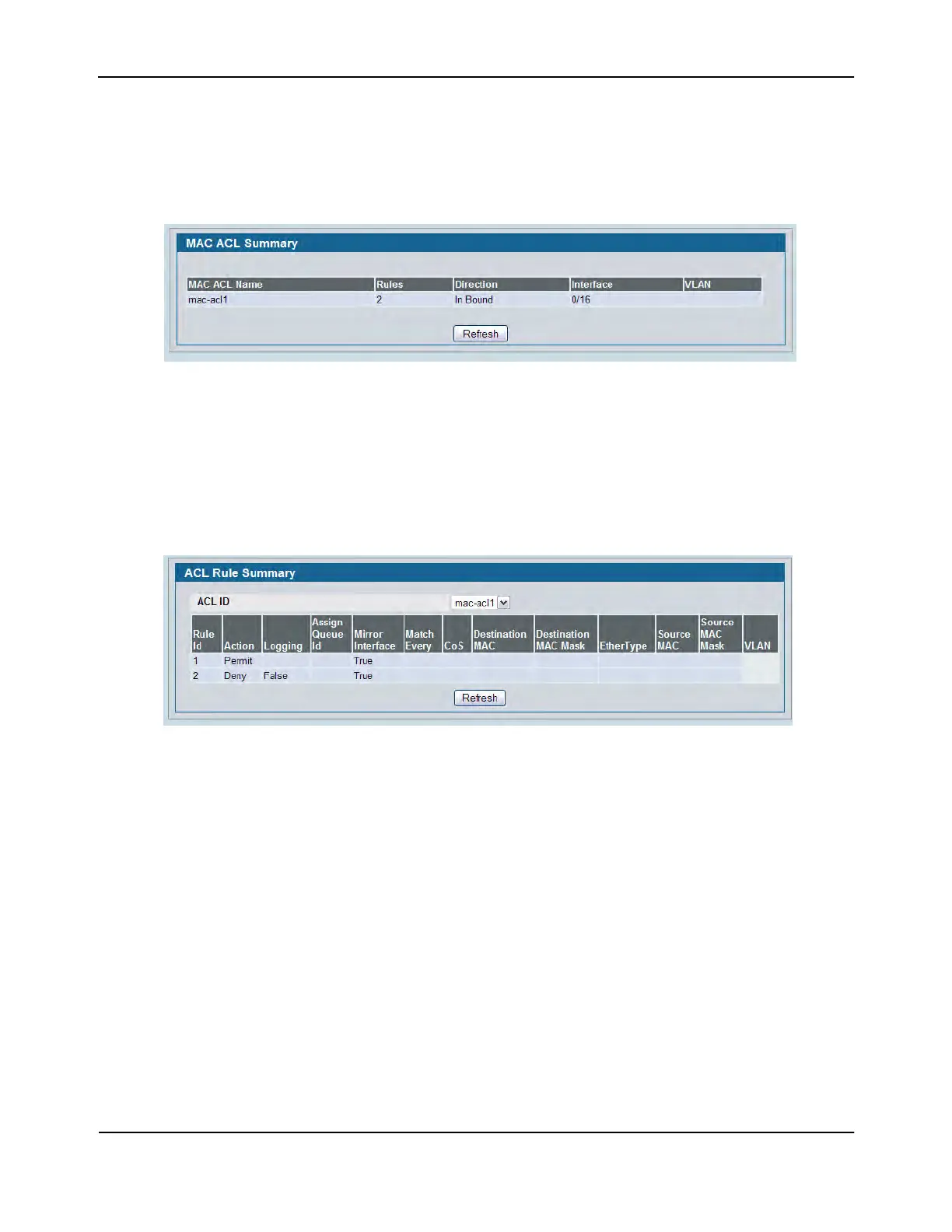

MAC ACL Summary
Use the MAC ACL Summary page to view a summary of the MAC ACLs that have been configured on the switch.
To access the page, click LAN > Monitoring > Access Control Lists > MAC Access Control Lists > Summary.
Figure 248: MAC ACL Summary
MAC ACL Rule Summary
Use the MAC ACL Rule Summary page to view a summary of the MAC ACLs that have been configured on the
switch. To access the page, click LAN > Monitoring > Access Control Lists > MAC Access Control Lists >
Summary.
Figure 249: MAC ACL Rule Summary

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
